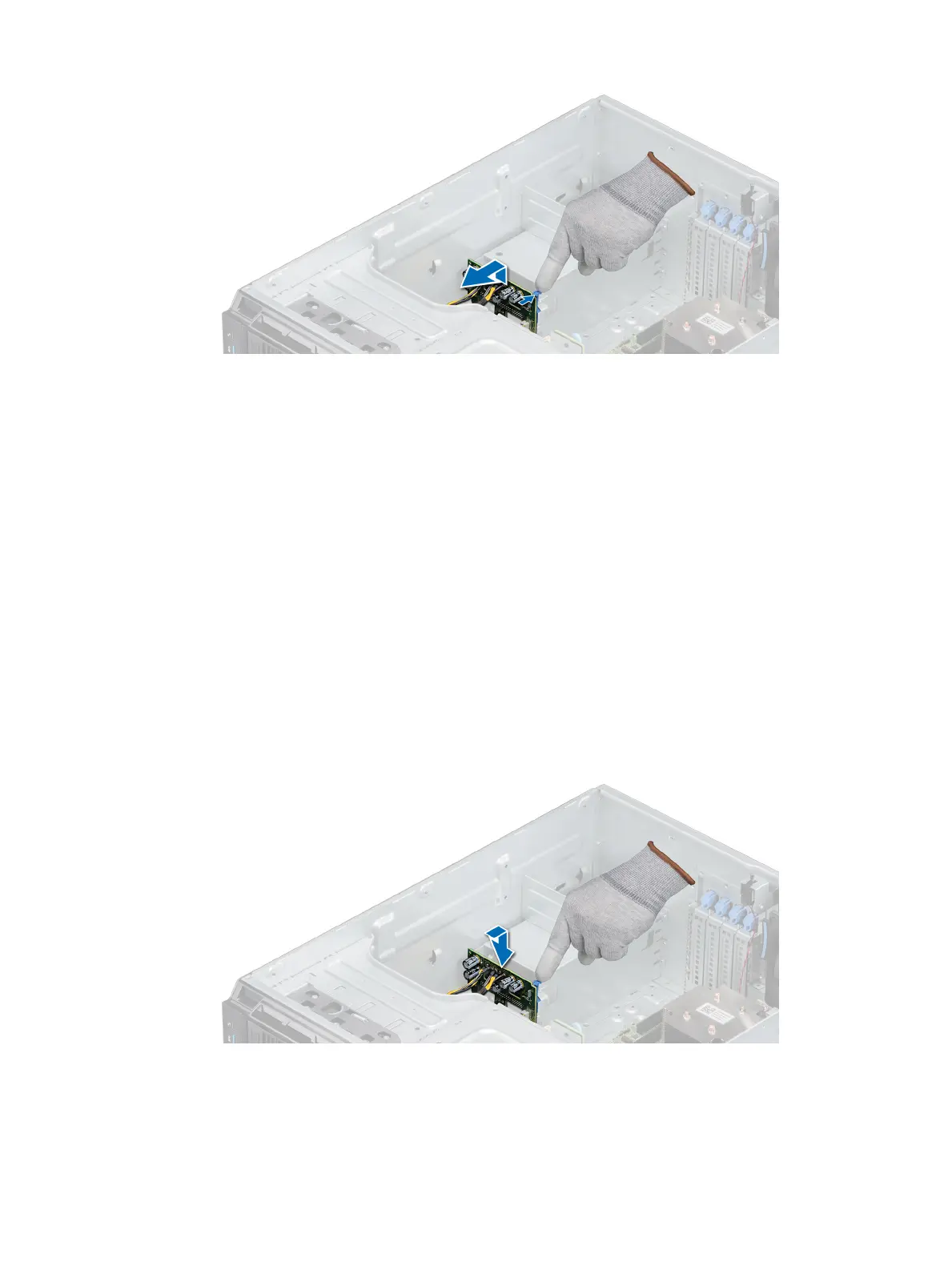

Figure 76. Removing the power interposer board
Next step
1 Replace the power interposer board (PIB).
Installing the power interposer board
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the power supply units.
4 Remove the air shroud.
Steps
1 Align the slots on the power interposer board (PIB) with the hooks on the power supply unit (PSU) cage and slide the PIB until it
snaps into place.
2 Route the P3 power cable through the securing clip on the system board and connect the power cable to the drive backplane.
Figure 77. Installing the power interposer board
Installing and removing system components
103
