System board jumpers and connectors

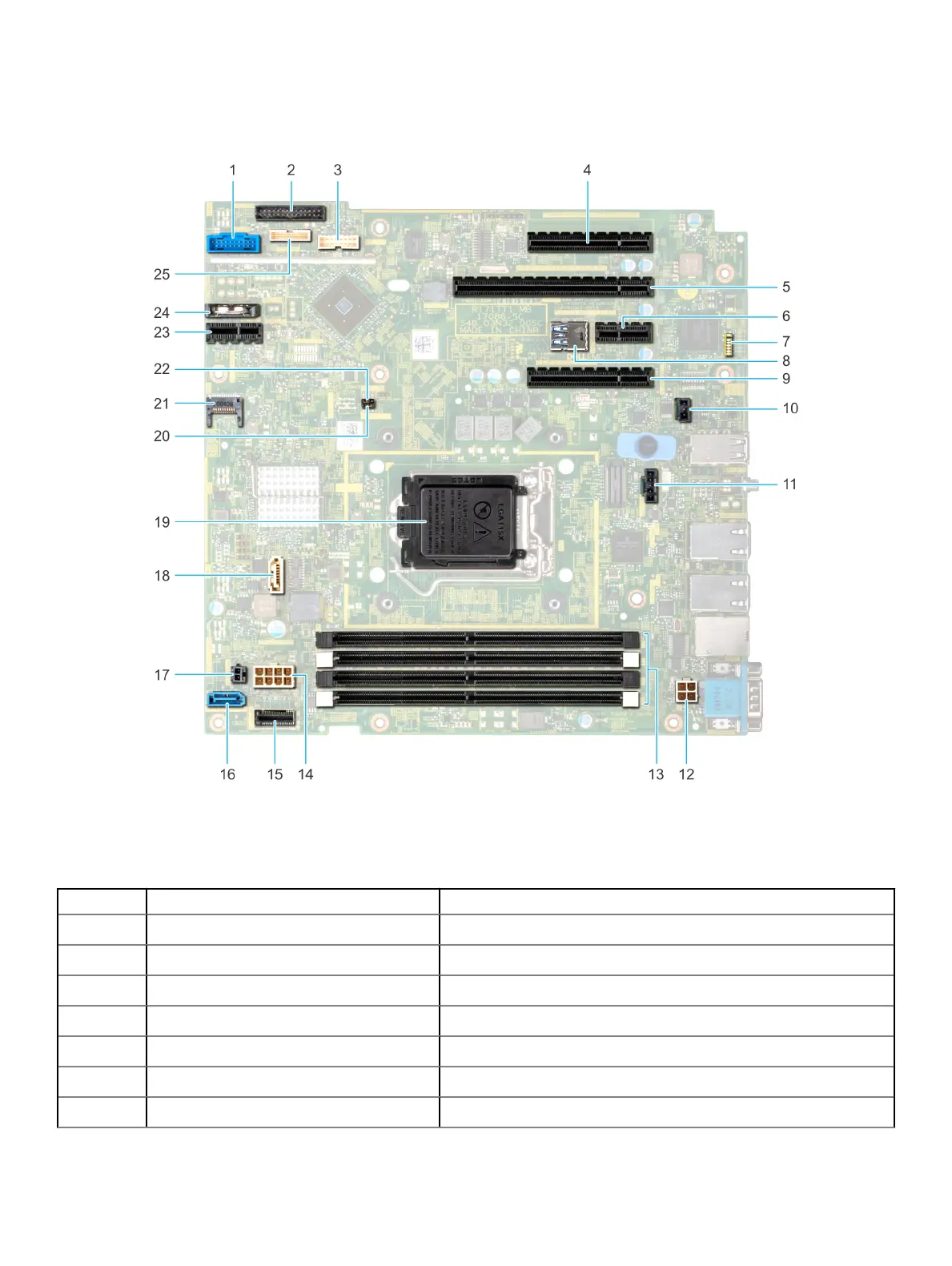

Figure 86. T340 system board jumpers and connectors
Table 9. System board connectors
Item Connector Description
1 FP_USB Front panel USB connector
2 PIB_CONN Power interposer board signal connector
3 BP_SIG Backplane signal connector
4 Slot 1 PCIE_G3_X8 CPU PCIe card connector 1
5 Slot 2 PCIE_G3_X8 CPU PCIe card connector 2
6 Slot 3 PCIE_G3_X1 PCH PCIe card connector 3
7 LEDs (7) System board diagnostic LED indicators
114 Jumpers and connectors
