2 Follow the procedure listed in the Before working inside your system.
3 Remove the air shroud.
4 Remove the IDSDM or vFlash module.
NOTE: To use a MicroSD card with your system, ensure that the Internal SD Card Port is enabled in System Setup.
NOTE: If reinstalling, ensure that you install the MicroSD cards into the same slots based on the labels you had marked on the
cards during removal.
Steps
1 Locate the MicroSD card connector on the IDSDM/vFlash module. Orient the MicroSD card appropriately and insert the contact-pin
end of the card into the slot. To locate IDSDM/vFlash, see the System board jumpers and connectors section.
NOTE: The slot is keyed to ensure correct insertion of the card.
2 Press the card into the card slot to lock it into place.

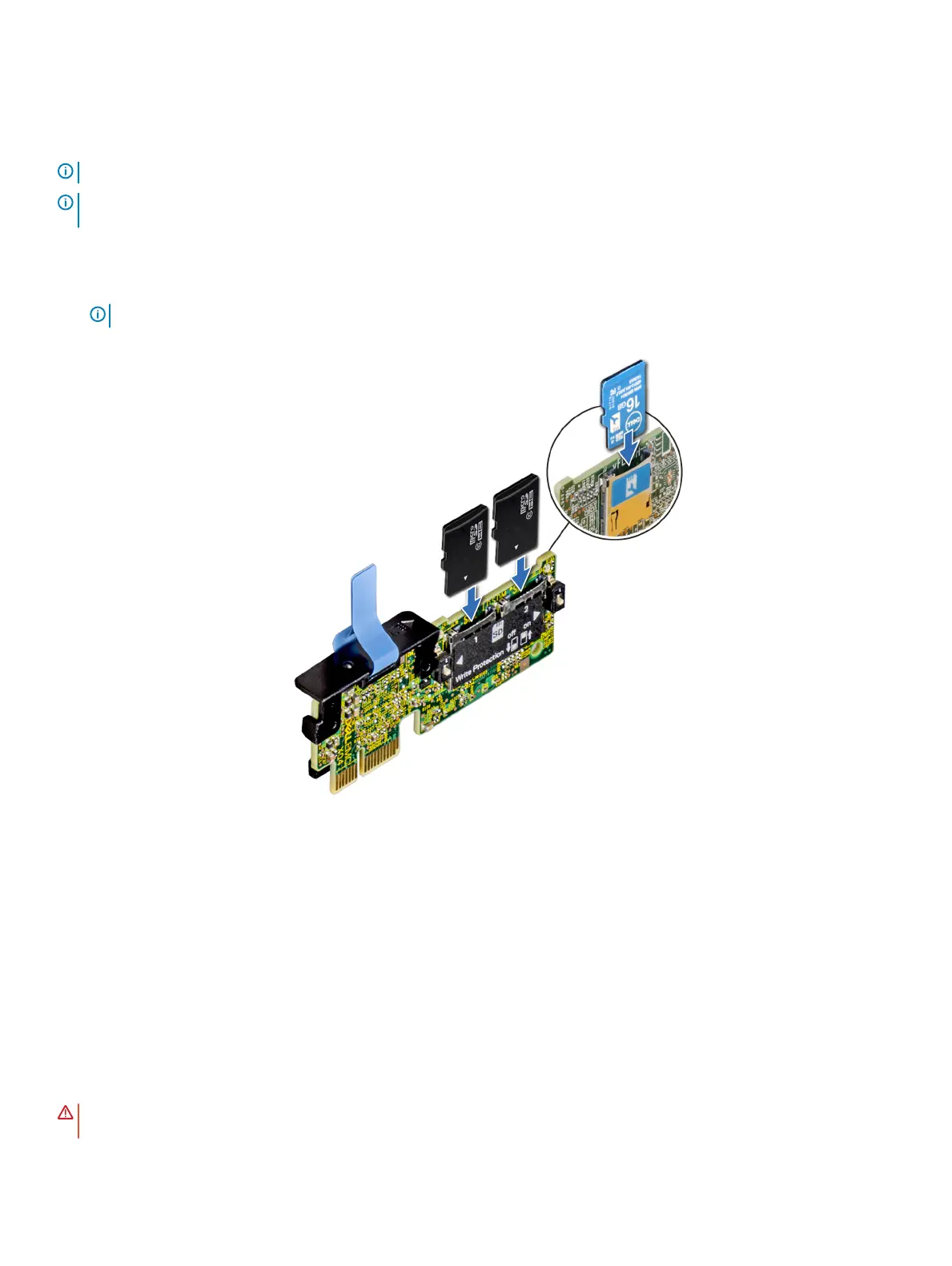

Figure 64. Installing the MicroSD card
Next steps
1 Install the IDSDM or vFlash module.
2 Follow the procedure listed in the After working inside your system.
Processor and heat sink
Removing the heat sink
Prerequisites
WARNING
: The heat sink may be hot to touch for some time after the system is powered down. Allow the heat sink to cool
before removing it.
Installing and removing system components 91
