4 If you are replacing the IDSDM/vFlash card, remove the MicroSD cards.
NOTE: Temporarily label each SD card with its corresponding slot number before removal. Reinstall the SD cards into the
corresponding slots.
Step
Holding the pull tab, lift the IDSDM/vFlash card out of the system.
Next step
NOTE: If you are replacing the IDSDM or vFlash module, remove the MicroSD cards.
1 Replace the IDSDM/vFlash module.
Installing optional IDSDM or vFlash card
Prerequisites
1 Follow the safety guidelines listed in the Safety instructions.
2 Follow the procedure listed in the Before working inside your system.
3 Remove the air shroud.
Steps
1 Locate the IDSDM/vFlash connector on the system board. To locate IDSDM/vFlash connector, see System board jumpers and
connectors
section.
2 Align the IDSDM/vFlash card with the connector on the system board.
3 Push the IDSDM/vFlash card until it is rmly seated on the system board.

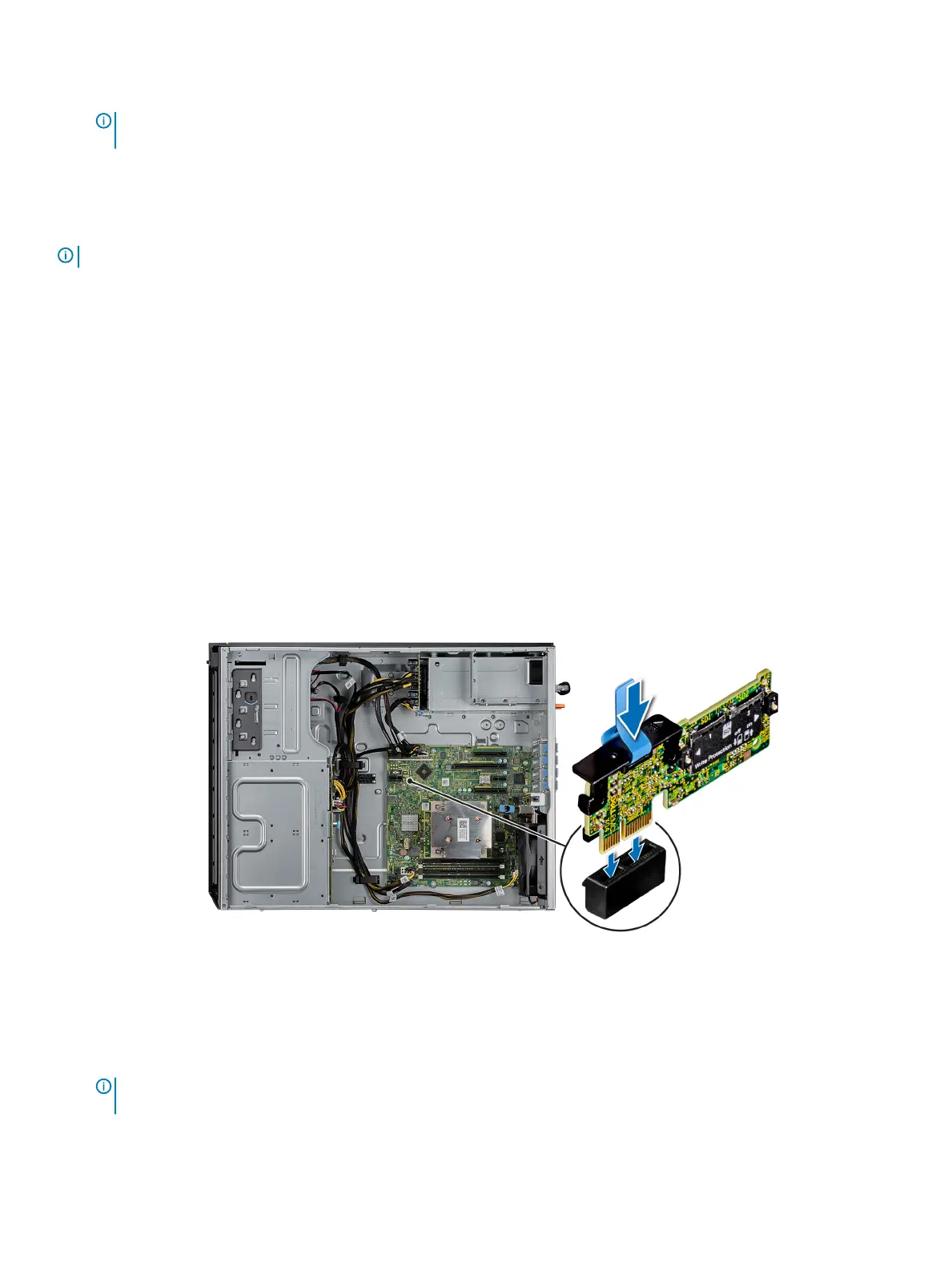

Figure 62. Installing optional IDSDM or vFlash card
Next steps
1 Install the MicroSD cards.
NOTE
: Reinstall the MicroSD cards into the same slots that are based on the labels you had marked on the cards during
removal.
2 Install the air shroud.
