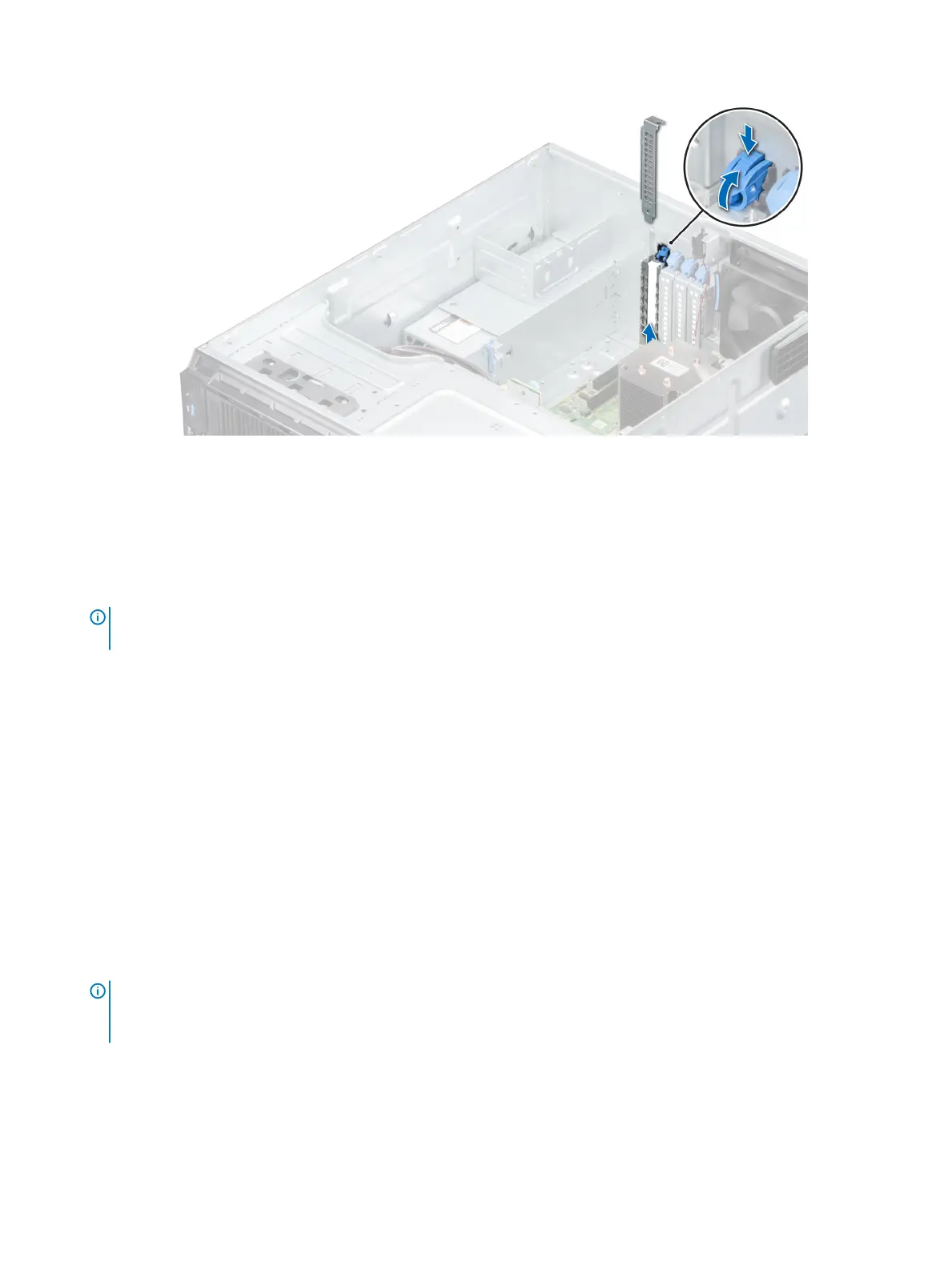

Figure 57. Removing the ller bracket
3 Hold the expansion card by its edges, and pull the card up to remove it from the expansion card connector and the system.
4 Install the ller bracket by performing the following steps:
a Align the expansion card ller bracket with the slot on the system.
b Push the expansion card ller bracket downwards until rmly seated.
c Close the blue expansion card retention latch by pushing the latch up until the latch snaps into place.
NOTE
: Filler brackets must be installed in empty expansion-card slots to maintain FCC certication of the system. The
brackets also keep dust and dirt out of the system and aid in proper cooling and airow inside the system.
Next steps
1 Replace an expansion card.
2 Install the air shroud.
Installing an expansion card
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
Steps
1 Open the expansion card retention latch.
2 Remove the existing expansion card or ller bracket from the slot.
NOTE
: Store this bracket for future use. Filler brackets must be installed in empty expansion-card slots to maintain FCC
certication of the system. The brackets also keep dust and dirt out of the system and aid in proper cooling and airow
inside the system.
3 Holding the card by its edges, align the card with the expansion card connector on the system board.
4 Insert the card rmly into the expansion card connector until the card is rmly seated.
5 Close the expansion card retention latch by pushing the latch down until the latch snaps into place.
Installing and removing system components
85
