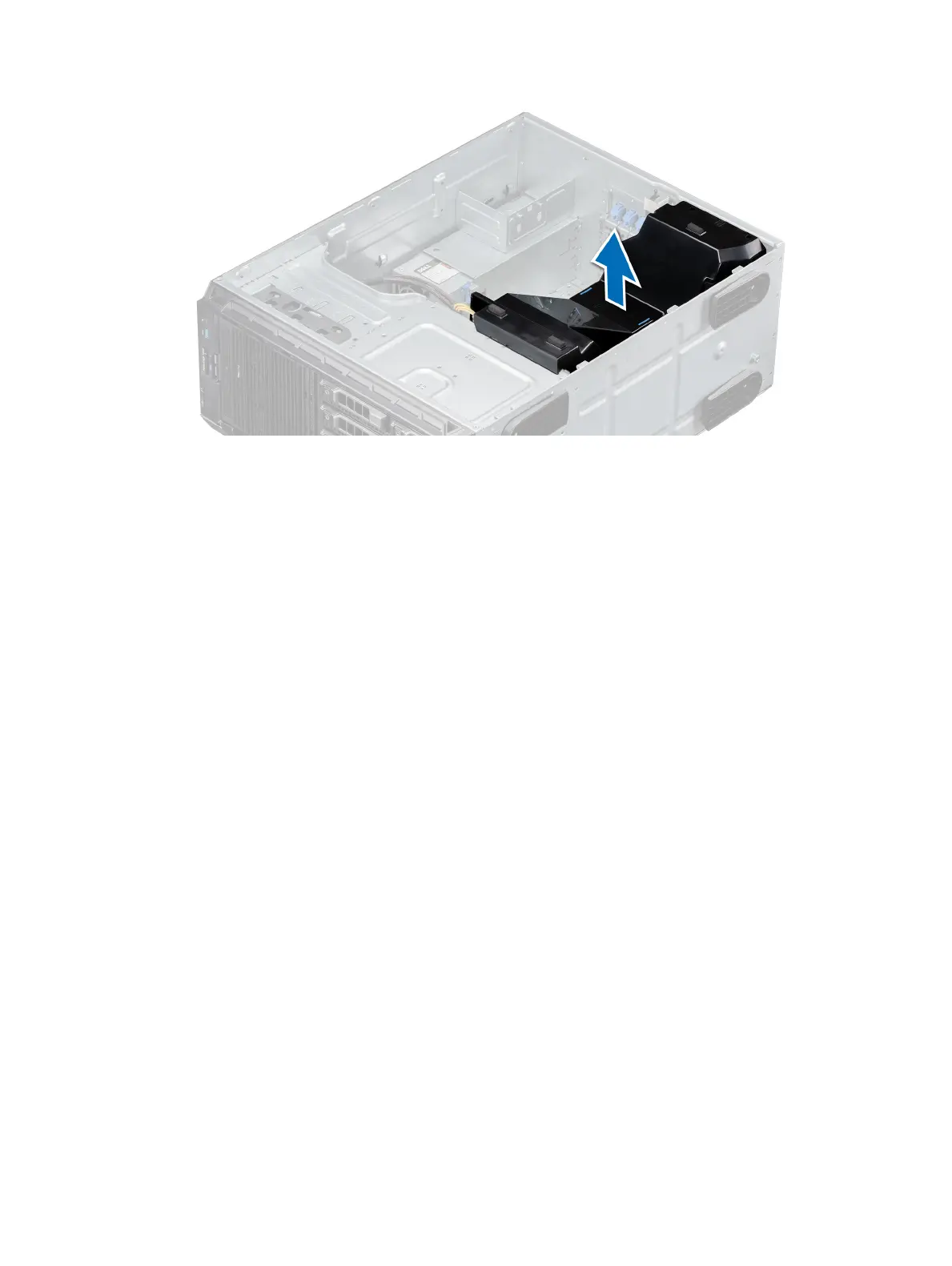

Figure 24. Removing the air shroud
Next step
1 Replace the air shroud.
Installing the air shroud
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 If applicable, route the cables inside the system along the system wall and secure the cables by using the cable-securing bracket.
Steps
1 Align the tabs on the air shroud with the slots on the system.
2 Lower the air shroud into the system until it is rmly seated.
