• Phillips #1 screwdriver
• Phillips #2 screwdriver
• 5mm hex nut screwdriver
• Plastic scribe
• Wrist grounding strap connected to the ground
• ESD mat
Front bezel
Removing the front bezel
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Keep the bezel key handy.
Steps
1 Unlock the bezel.
2 Press the blue release latch at the top of the bezel to release the bezel from the system.
3 Unhook the bezel tabs from the slots at the bottom, and lift the bezel.

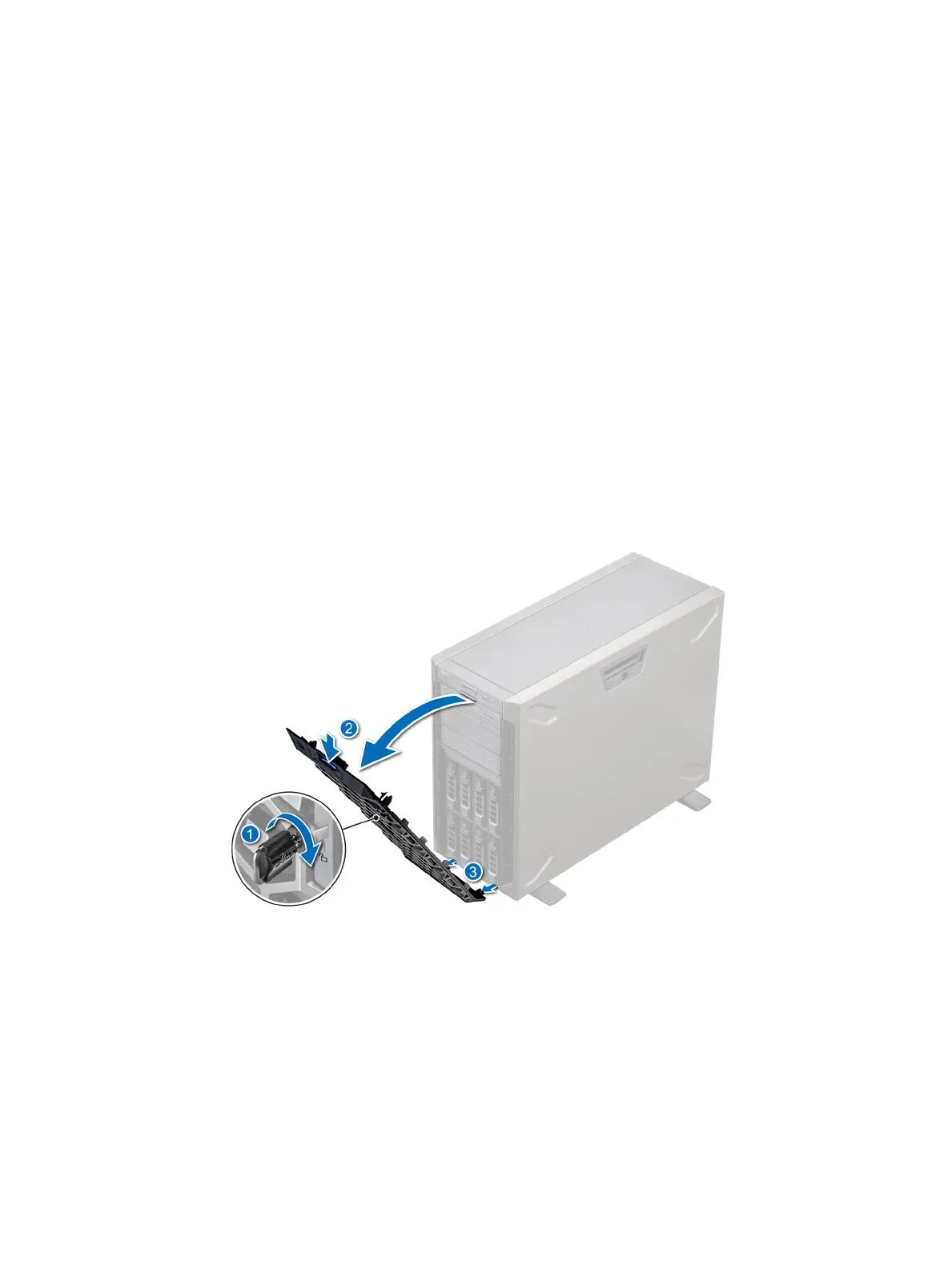

Figure 17. Removing the front bezel
Next step
1 Replace the front bezel.
44
Installing and removing system components
