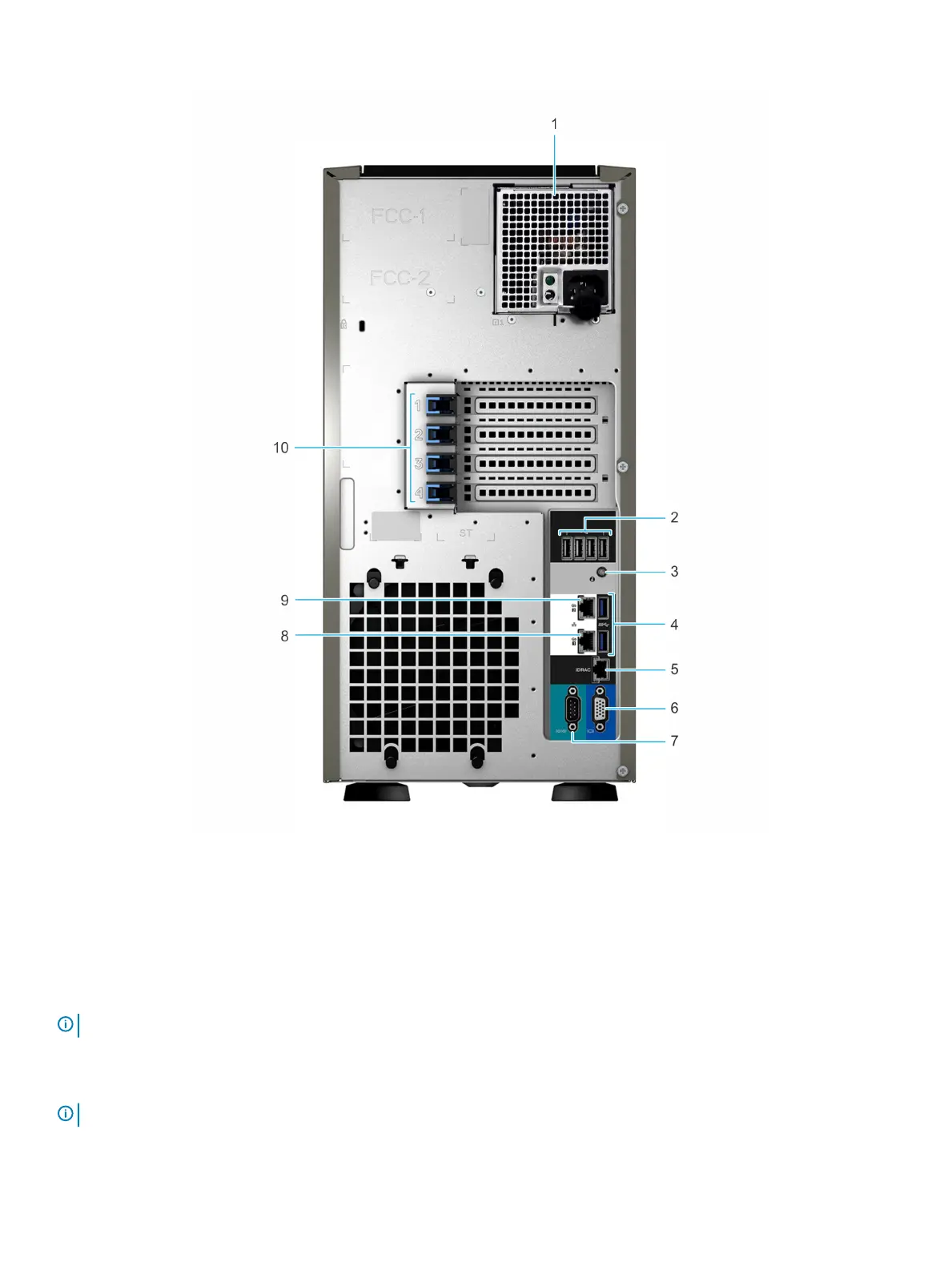

Figure 4. Rear view of 4 x 3.5-inch drive system
1
Cabled power supply unit (PSU) 2 USB 2.0 port (4)
3 System identication button 4 USB 3.0 port (2)
5 iDRAC dedicated NIC port 6 VGA port
7 Serial port 8 NIC port (Gb1)
9 NIC port (Gb2) 10 PCIe expansion card slots (4)
NOTE: For more information about the ports and connectors, see the Ports and connectors specications section.
Inside the system
NOTE
: Components that are hot swappable are marked orange and touch points on the components are marked blue.
Dell EMC PowerEdge T340 system overview 13
