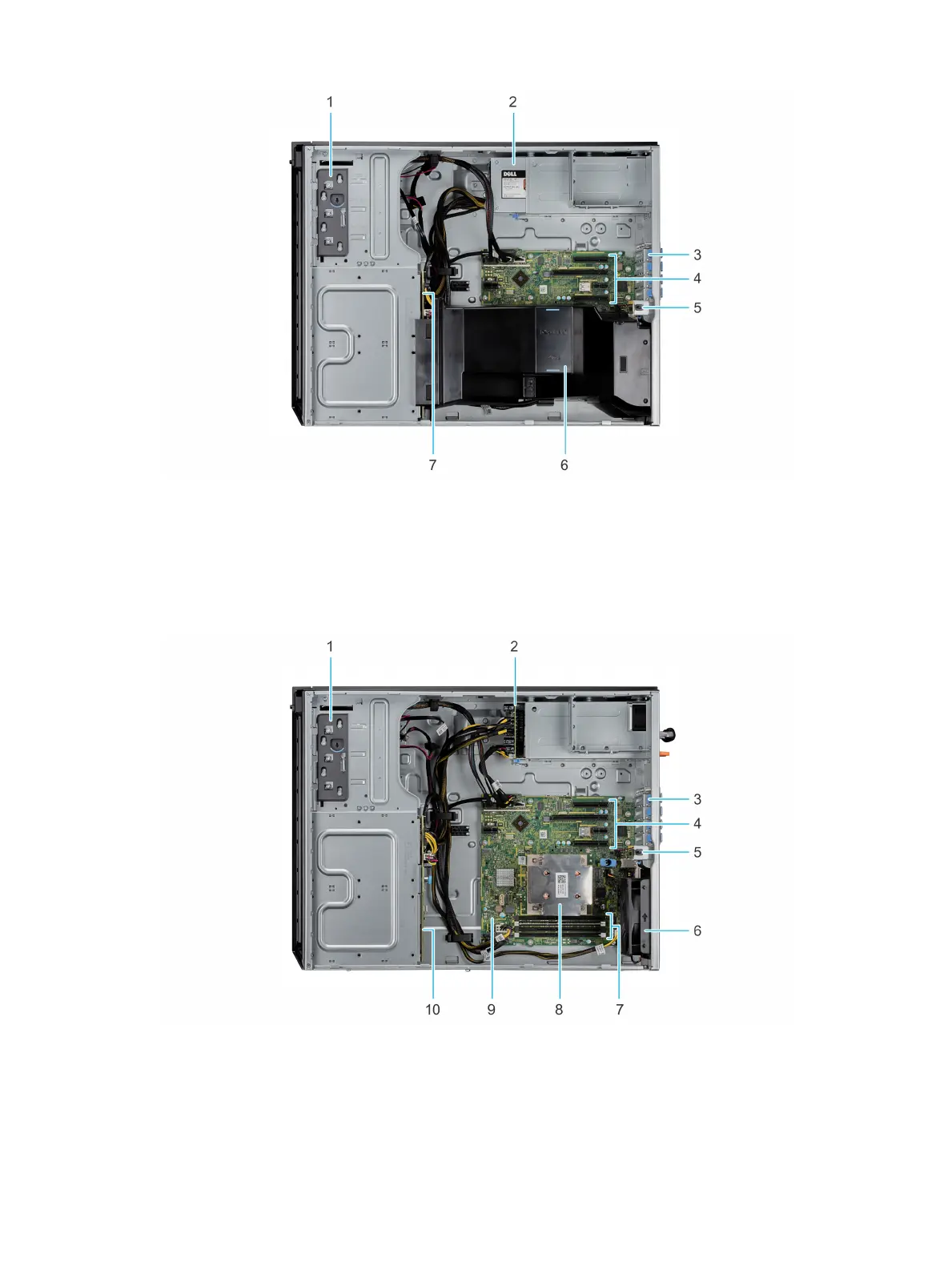

Figure 5. Inside the system with cabled power supply unit (PSU)
1
Optical drive or tape drive 2 Power supply unit (cabled)
3 PCIe Expansion card latch (4) 4 PCIe Expansion card slots (4)
5 Intrusion switch 6 Air shroud
7 Drive backplane
Figure 6. Inside the system with redundant power supply unit (PSU)
1
Optical drive or tape drive 2 Power interposer board
3 PCIe Expansion card latch (4) 4 PCIe Expansion card slots (4)
