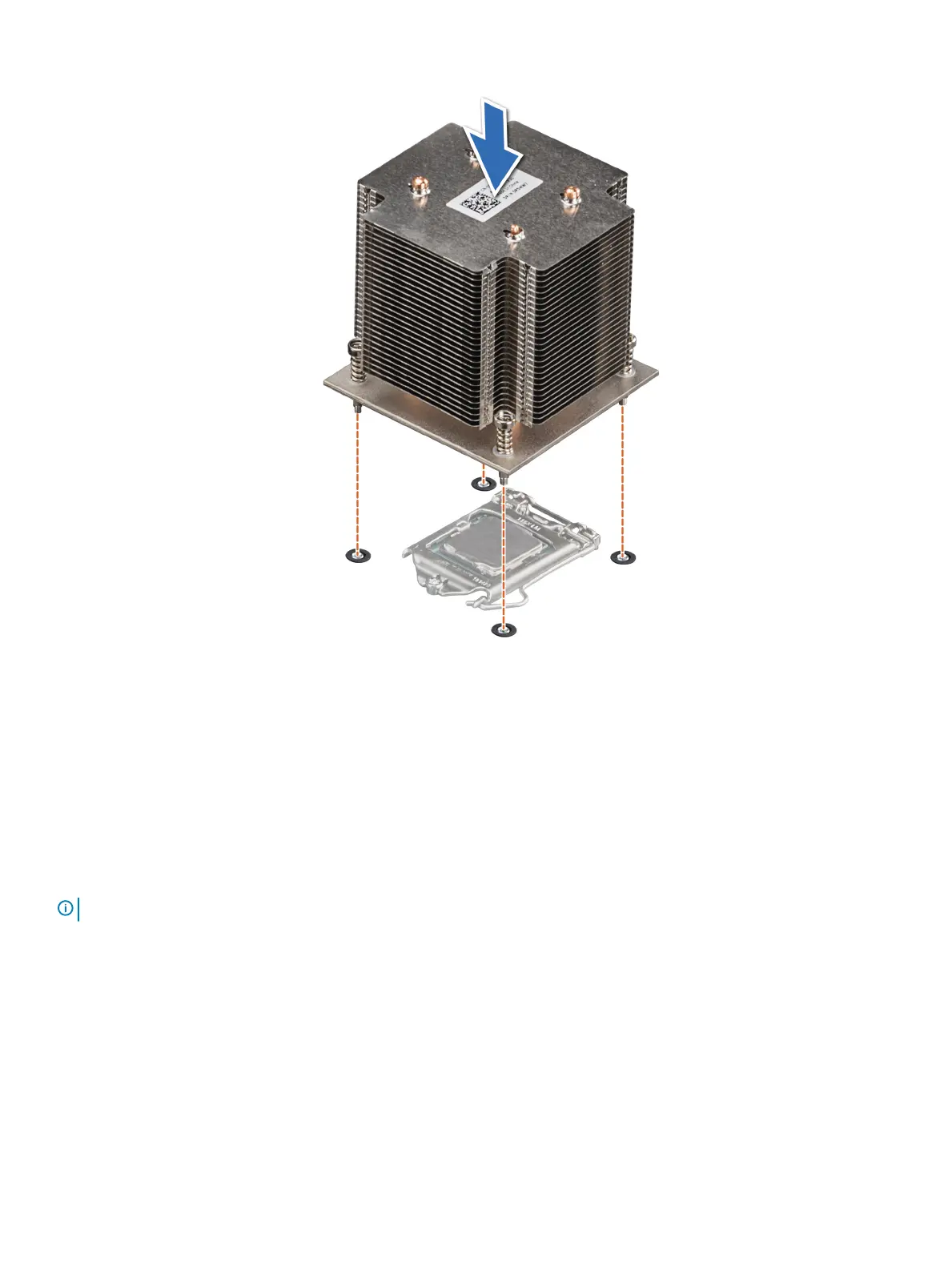

Figure 69. Installing the heat sink
Next steps
1 Replace the air shroud.
2 Follow the procedure listed in After working inside your system.
3 While booting, press F2 to enter System Setup and verify that the processor information matches the new system conguration.
4 Run the system diagnostics to verify that the new processor operates correctly.
Power supply unit
NOTE
: For more information, see the Technical specications section.
Removing the power supply unit blank
Prerequisite
1 Follow the safety guidelines listed in Safety instructions.
Step
Remove the PSU blank in the bay by pulling the blank outward.
96
Installing and removing system components
