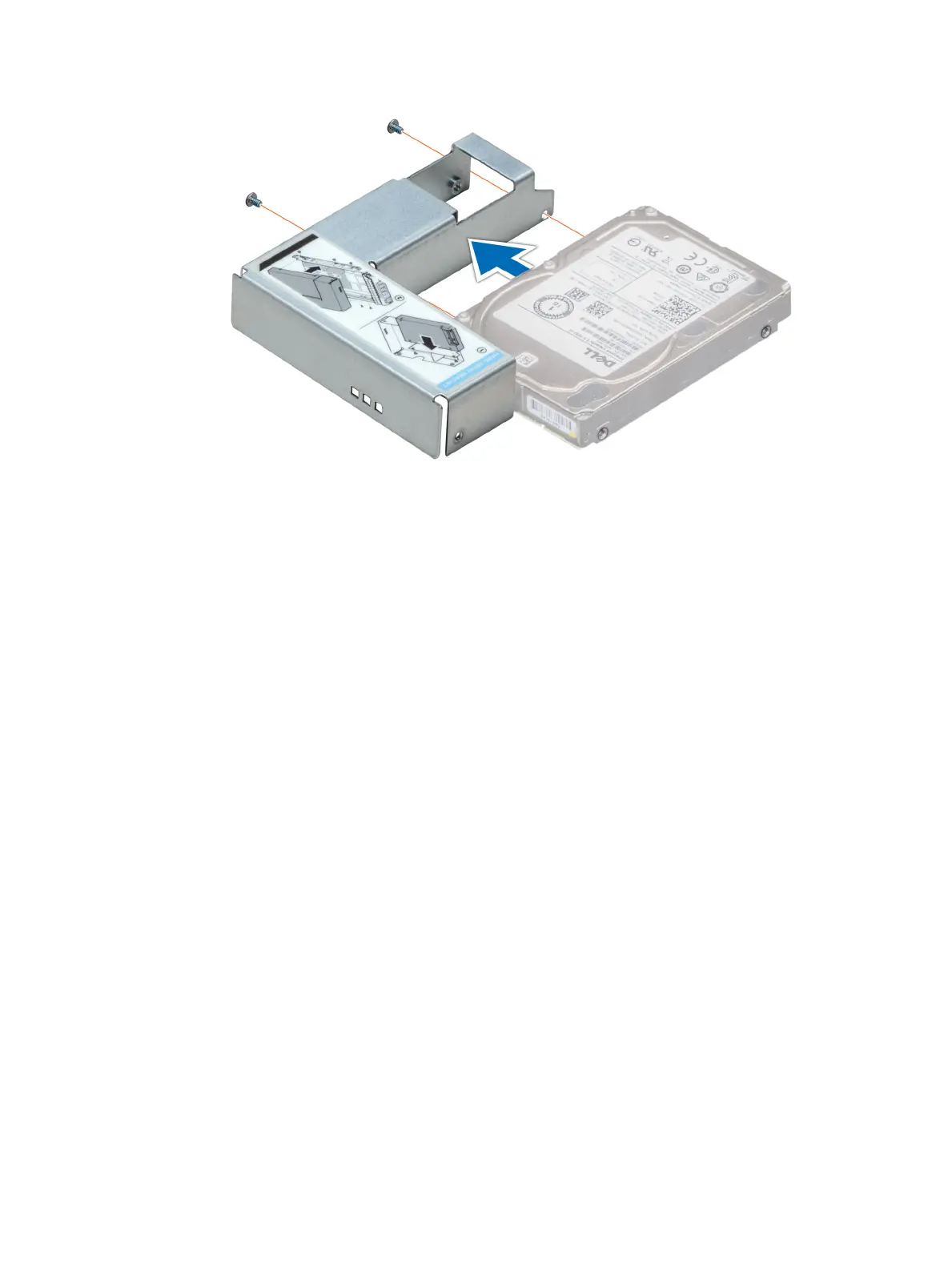

Figure 35. Installing a 2.5-inch drive into the 3.5-inch drive adapter
Next steps
1 Replace a 3.5-inch adapter into the 3.5-inch drive carrier.
2 Follow the procedure listed in After working inside your system.
Removing a 3.5-inch drive adapter from a 3.5-inch drive carrier
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the 3.5-inch drive carrier from the system.
Steps
1 Remove the screws from the rails on the drive carrier.
2 Lift the 3.5 inch drive adapter out of the drive carrier.
62
Installing and removing system components
