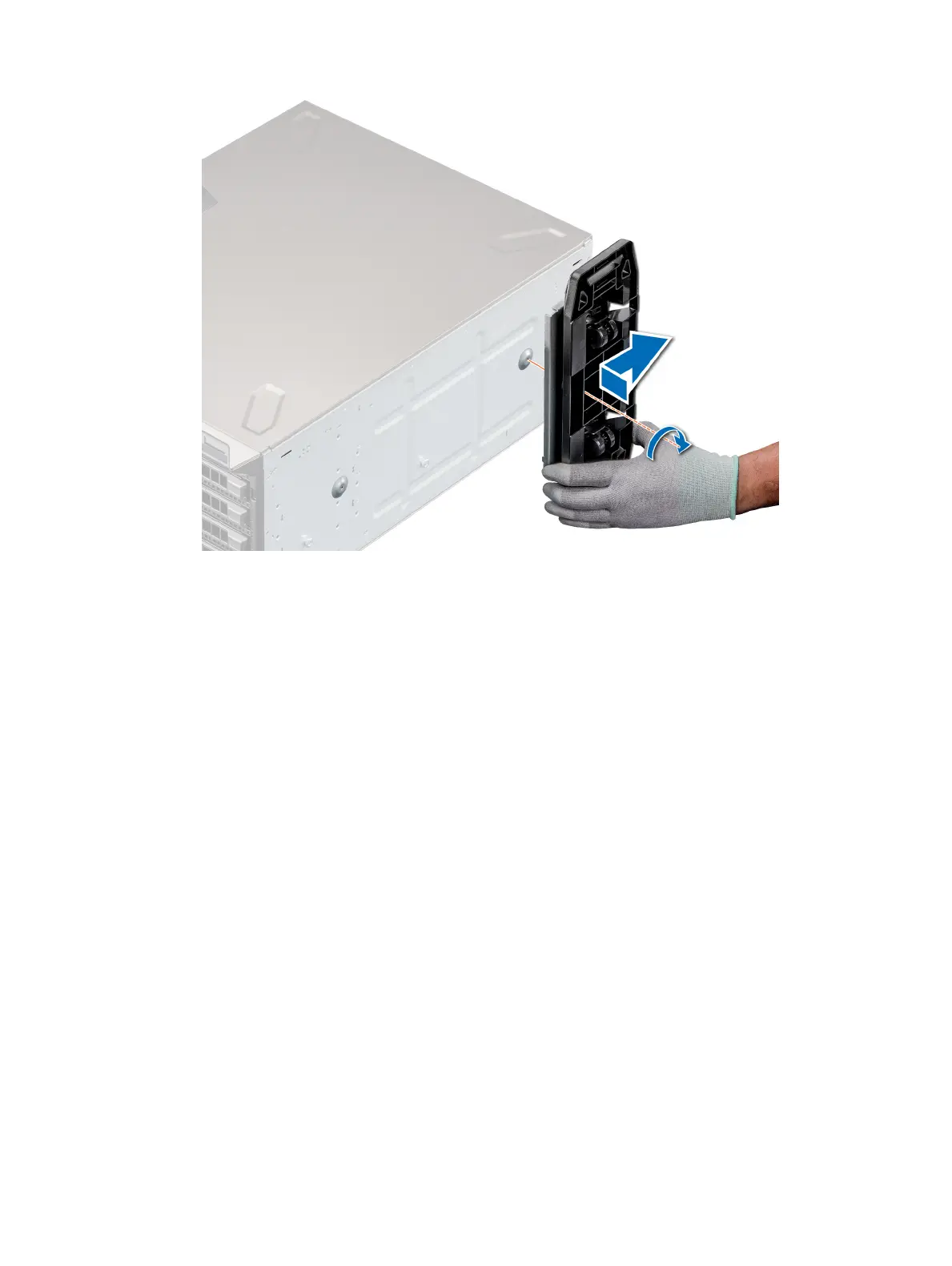

Figure 21. Installing caster wheels
Next step
1 Follow the procedure listed in After working inside your system.
System cover
Removing the system cover
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Power o the system and all attached peripherals.
3 Disconnect the system from the electrical outlet and disconnect the peripherals.
4 Place the system on a at, stable surface.
5 Remove the front bezel.
Steps
1 Use a 1/4-inch at head or a Phillips #2 screwdriver to turn the cover release latch counterclockwise to the unlock position.
2 Press the cover release latch, and remove the system cover.
Installing and removing system components
49
