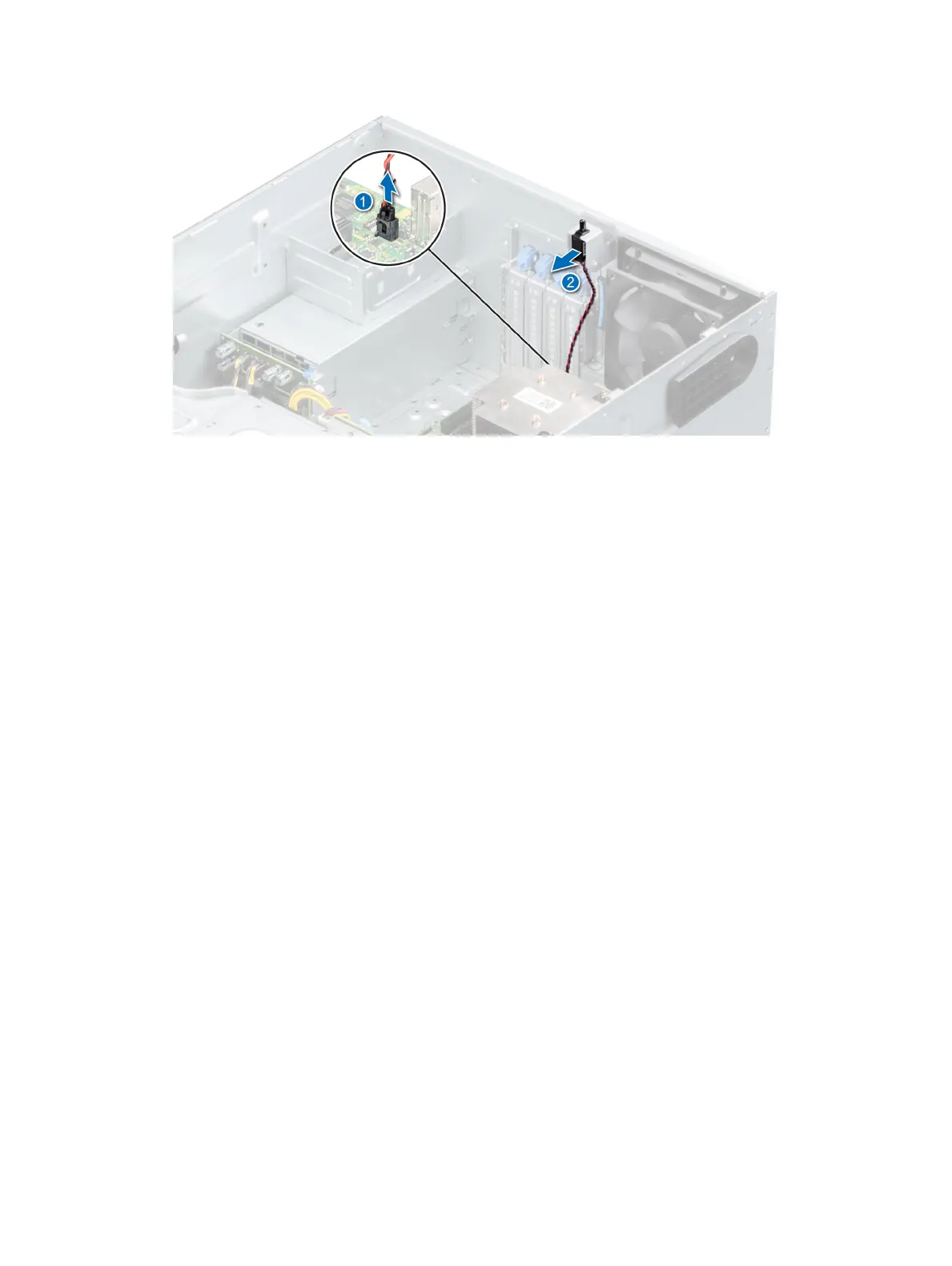

Figure 26. Removing the intrusion switch
Next step
1 Replace the intrusion switch.
Installing the intrusion switch
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
Steps
1 Align and slide the intrusion switch into the slot in the system.
2 Connect the intrusion switch cable connector to the intrusion switch connector on the system board.
54
Installing and removing system components
