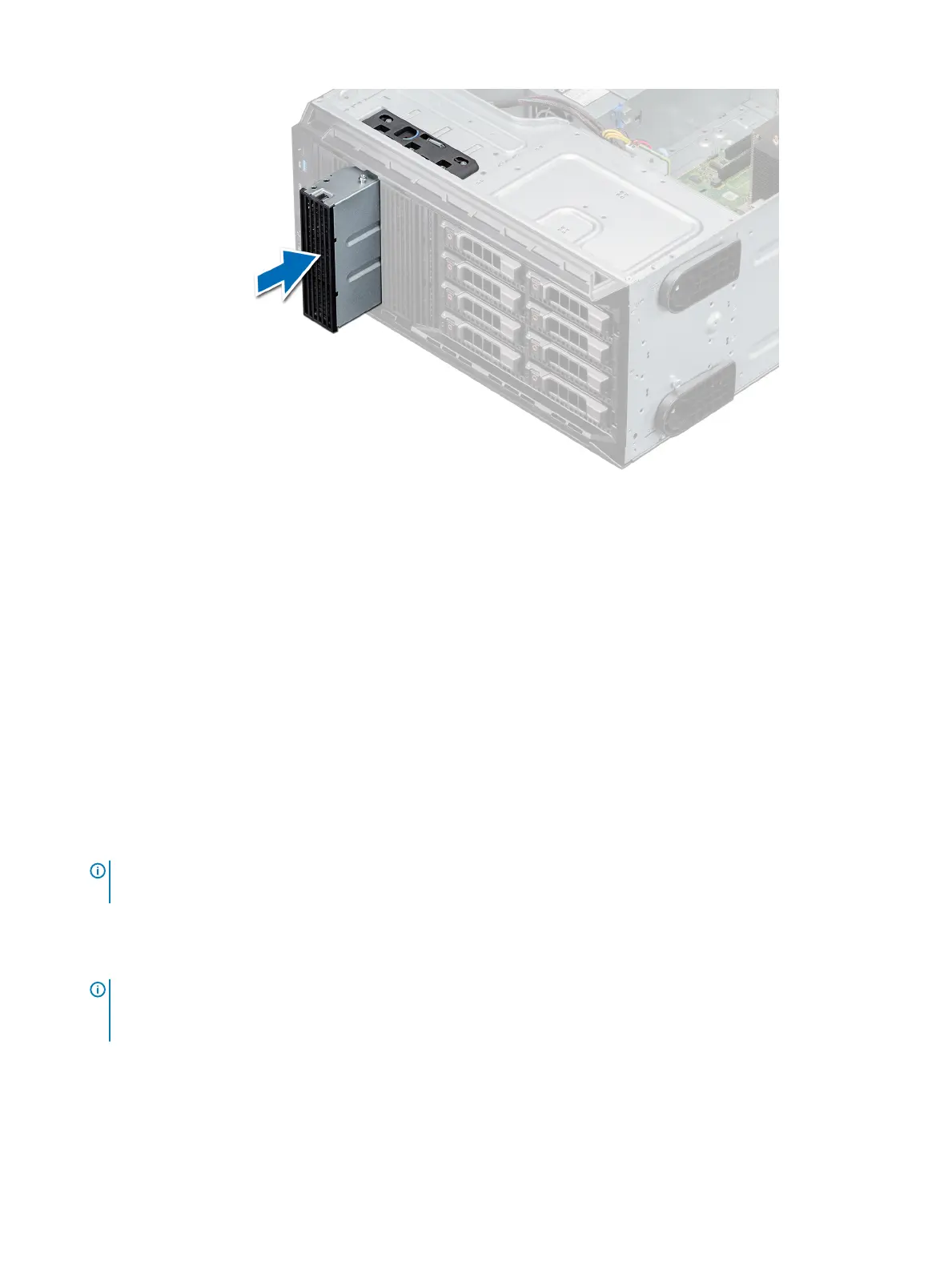

Figure 39. Installing the optical or tape drive blank
Next steps
1 Install the front bezel.
2 Follow the procedure listed in After working inside your system.
Removing the optical drive
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the front bezel.
Steps
1 Disconnect the power and data cable connectors from the connectors on the optical drive.
NOTE
: Observe the routing of the power and data cable inside the chassis as you remove them from the system board and
the drive. You must route these cables properly when you replace them to prevent them from being pinched or crimped.
2 To remove the drive, slide the release latch downwards to release the drive.
3 Slide the drive out of the drive bay.
4 If you are not immediately replacing the tape drive, install the blank.
NOTE
: Blanks must be installed on empty optical drive or tape drive slots to maintain FCC certication of the system. The
brackets also keep dust and dirt out of the system and aid in proper cooling and airow inside the system. Perform the same
steps to install blanks.
66 Installing and removing system components
