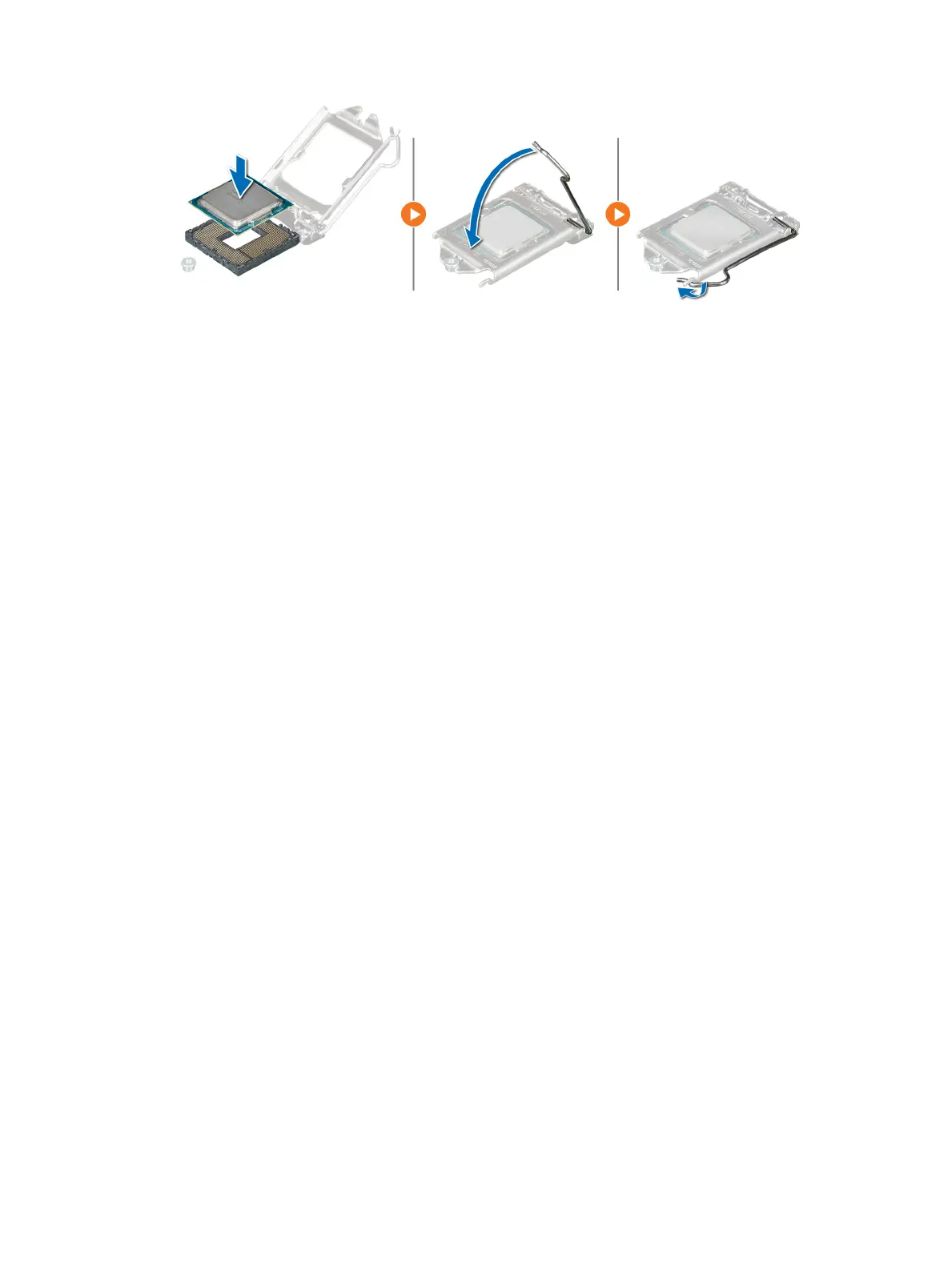

Figure 67. Installing the processor
Next steps
1 Replace the heat sink.
2 Replace the air shroud.
3 Follow the procedure listed in After working inside your system.
Installing the heat sink
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Install the processor.
Steps
1 If you are using an existing heat sink, remove the thermal grease from the heat sink by using a clean lint-free cloth.
2 Use the thermal grease syringe included with your processor kit to apply the grease in a thin spiral on the top of the processor as
shown in the following gure.
94
Installing and removing system components
