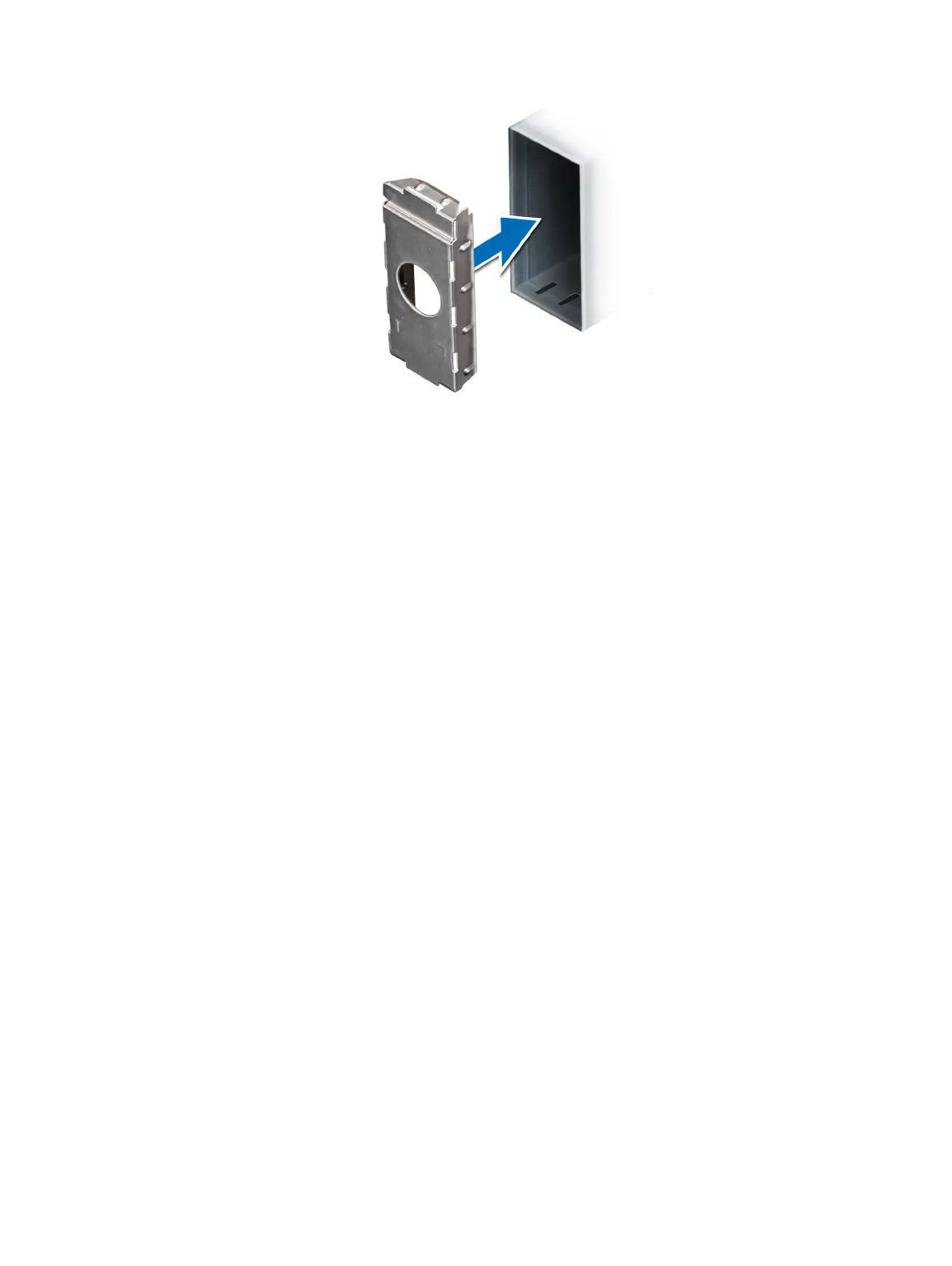

Figure 71. Installing the power supply unit blank
Removing a redundant AC power supply unit
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Disconnect the power cable from the power outlet and from the PSU you want to remove, then remove the cable from the strap on
the PSU handle.
Step
Press the orange release latch and slide the PSU out of the system using the PSU handle.
98
Installing and removing system components
