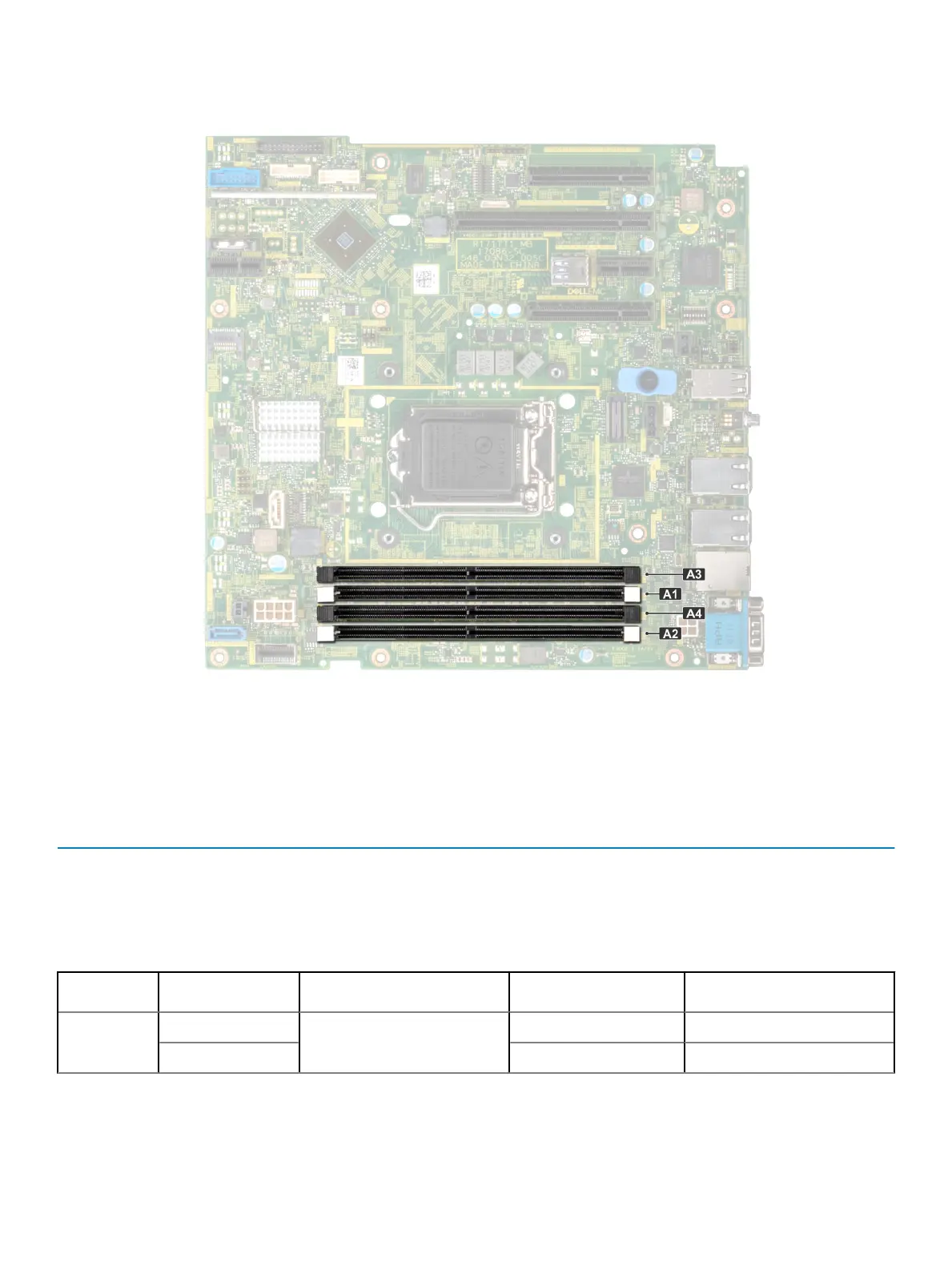

Figure 51. System memory view
Table 4. Memory channels
Processor Channel 0 Channel 1
Processor 1 Slots A1, A3 Slots A2, A4
The following table shows the memory populations and operating frequencies for the supported congurations:
Table 5. Memory population
DIMM Type DIMMs Populated/
Channel
Voltage
Operating Frequency (in
MT/s)
Maximum DIMM Rank/Channel
UDIMM 1
1.2 V
2133, 2400, 2666 Dual rank or single rank
2 2133, 2400, 2666 Dual rank or single rank
Installing and removing system components 77
