Operator Panel 91
12
Operator Panel
NOTE: The images used in this manual are those of the Dell™ C1765nfw Color Multifunction Printer unless otherwise mentioned.

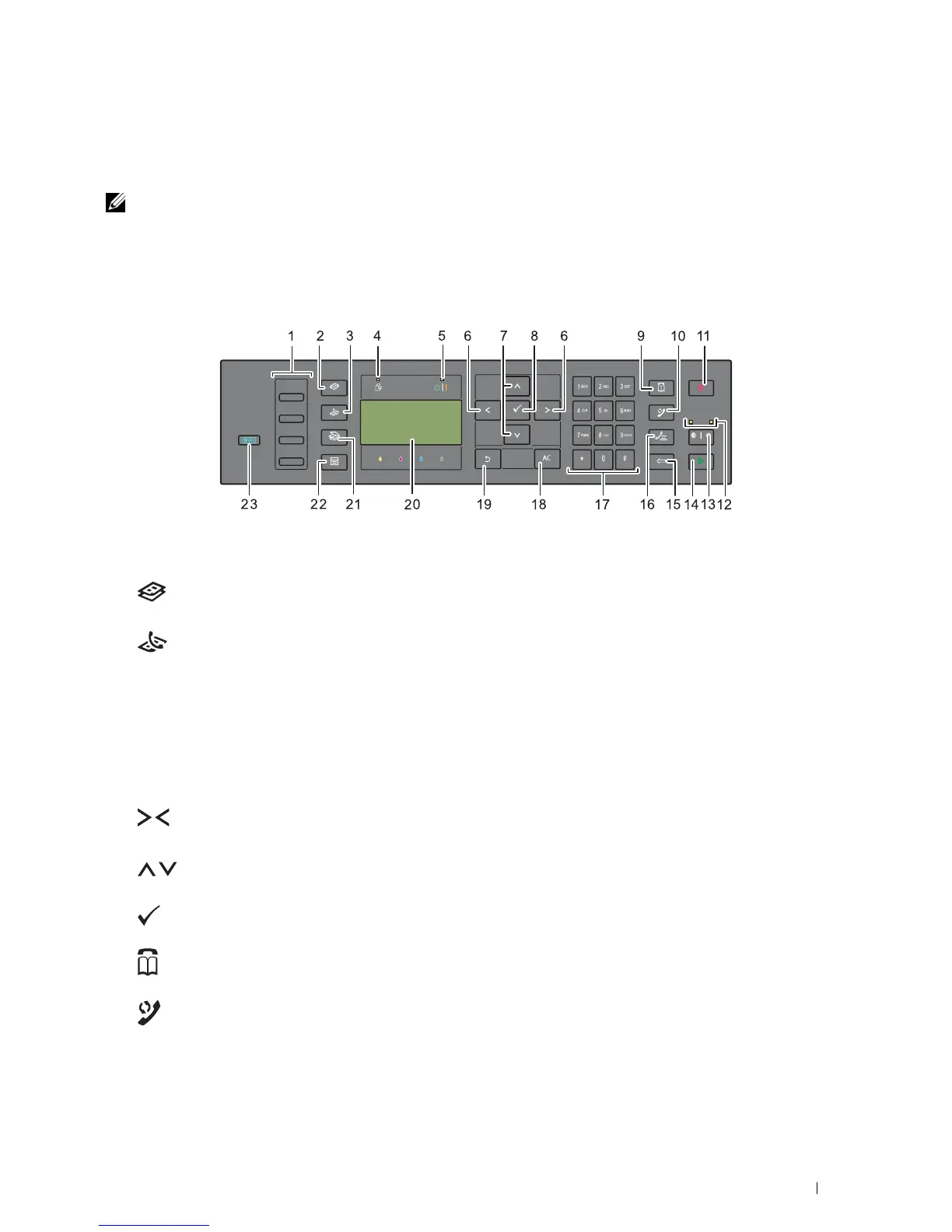

Using the Operator Panel Buttons
The operator panel has a 4-line by 28-character liquid crystal display (LCD), light-emitting diodes (LED), control
buttons, and numeric keypad, which allow you to control the printer.
1
One Touch Dial button
Calls up the stored Fax number registered in the Phone Book. The first four fax numbers in the Phone Book
are assigned to the buttons in row order, starting from the top corner.
2
(Copy)
button
Moves to the top level of the Copy menu.
3
(Fax)
button
Moves to the top level of the Fax menu.
4
Data LED
Lights up for incoming, outgoing, or pending Fax jobs.
5
Ready / Error LED
Lights up when the printer is ready. (Ready LED)
Lights up when the printer has an error. (Error LED)
6
button
Moves a cursor or highlight right or left.
7
button
Moves a cursor or highlight up or down.
8
(Set)
button
Confirms the entry of values.
9
(Contacts)
button
Moves to the Address Book menu for the Fax and Scan services.
10
(Re-dial / Pause)
button
Calls up the last telephone number the printer dialed.
Pauses a telephone number.
