174 | Installing System Components
4 Replace the system-board assembly. See "Installing a System-Board
Assembly" on page 164.
Removing the Interposer Extender Tray for 2U Node
1 Remove the system-board assembly. See “Removing a System-Board
Assembly" on page 163.
2 Remove the interposer extender for 2U node. See Figure 3-15.
3 Remove the screws that secure the interposer-extender tray to the
system board. See Figure 3-16.
4 Lift the interposer-extender tray out of the system-board assembly. See
Figure 3-16.

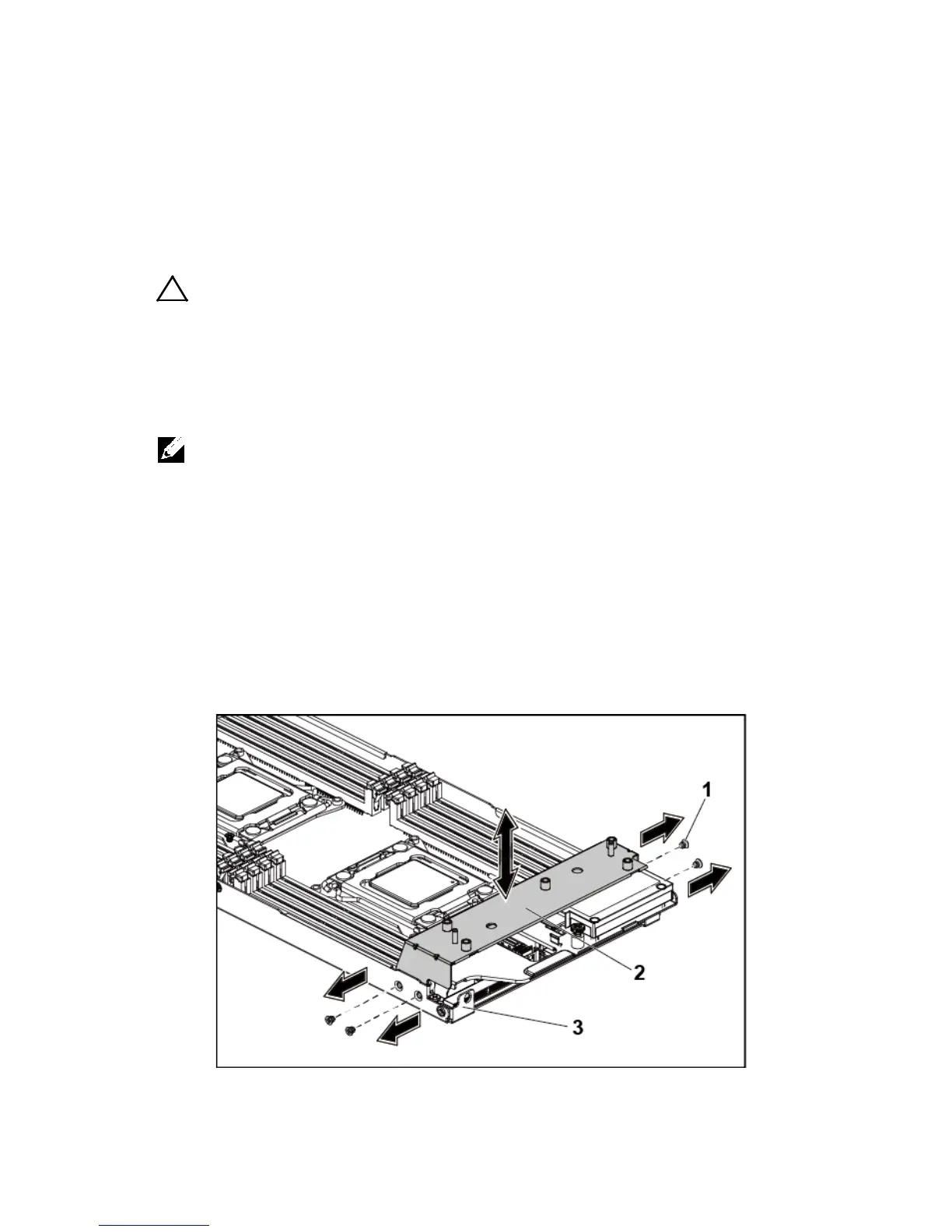

Figure 3-16. Removing and Installing the Interposer-Extender Tray
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
NOTE: This section is applicable to systems with 2U node only.

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
