334 | Jumpers and Connectors
Power Distribution Board 1 Connectors

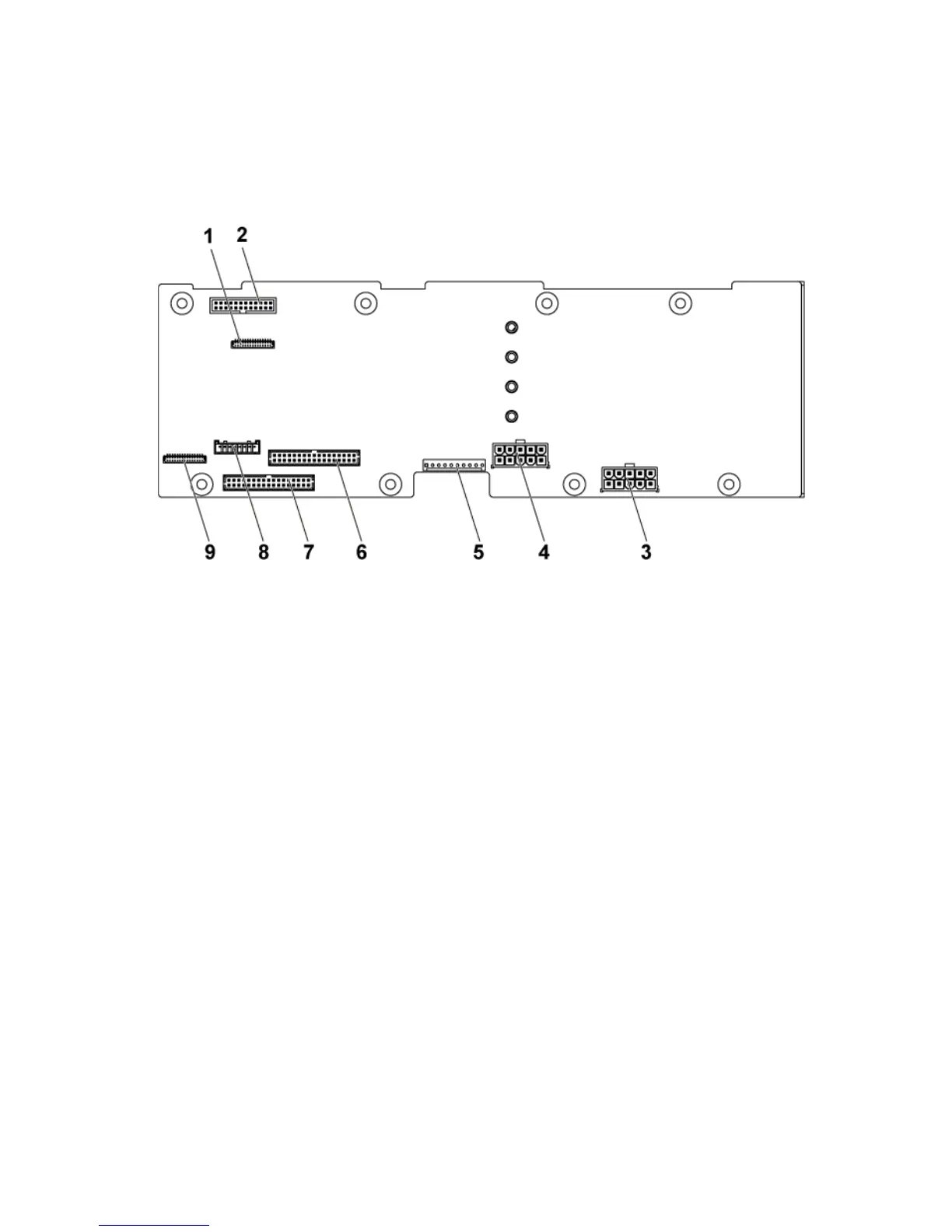

Figure 5-15. Power Distribution Board 1 Connectors
1
front panel connector for system
board 1 and 2
2
system fan connector
3
hard drive backplane power
connector 1
4
hard drive backplane power
connector 2
5
1x10pin control connector
6
2x17pin control connector for
system board 2 and 4
7
2x17pin control connector for
system board 1 and 3
8
1x8pin control connector to hard
drive backplane
9
front panel connector for system
board 3 and 4
