Dell PowerEdge C6220 II Hardware Owner's Manual

216 | Installing System Components
Cable Routing for LSI 2008 SAS Mezzanine Card (1U Node)
1 Connect the mini-SAS&SGPIO cable to the LSI 2008 SAS Mezzanine
card, and connect the other end of the cable to the corresponding
connectors on the system board. See Figure 3-45.
2 Connect the mini-SAS cable to the LSI 2008 SAS Mezzanine card, and
connect the other end of the cable to the corresponding connector on
the system board. See Figure 3-45.
NOTE: The SGPIO cable must be connected before the LSI 2008 SAS Mezzanine
card is installed.

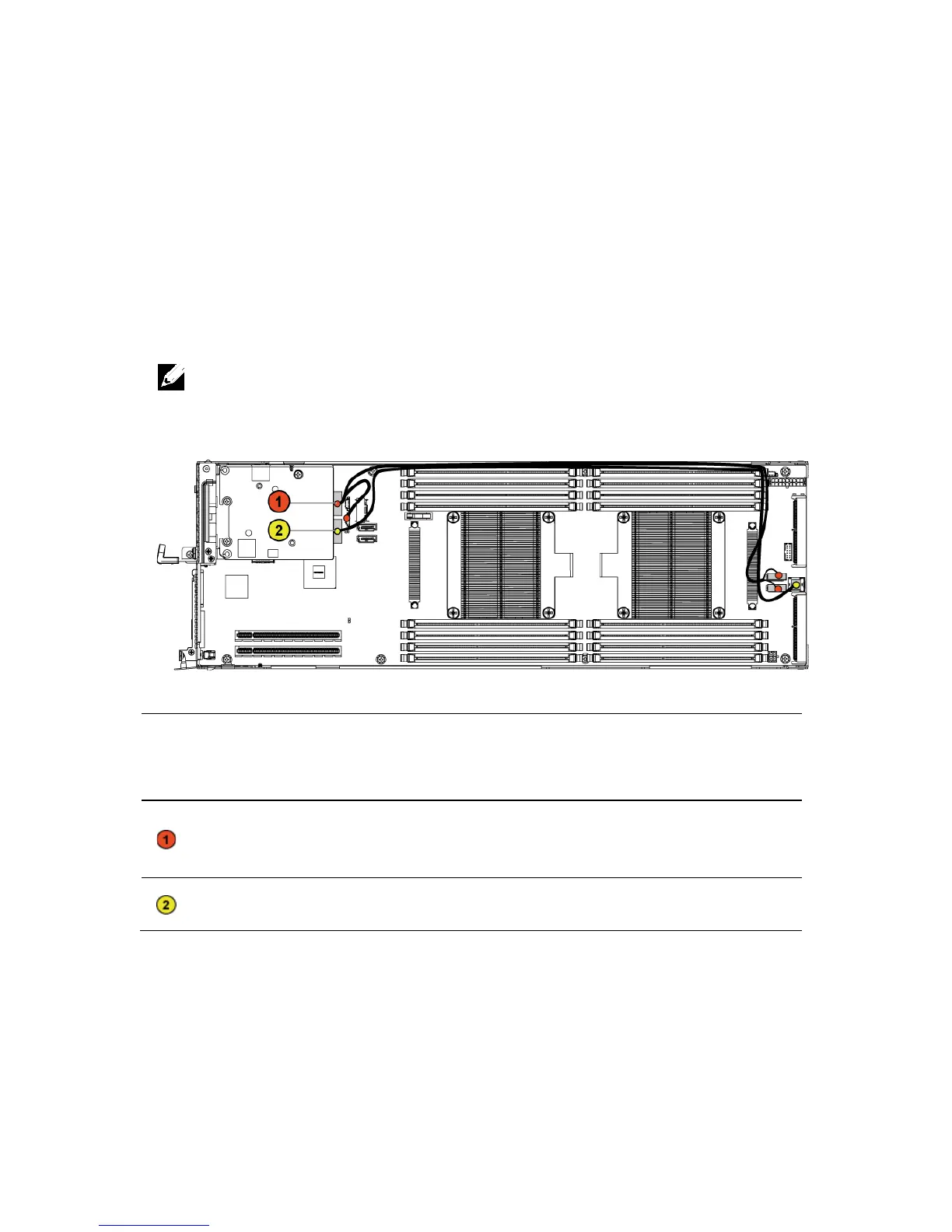

Figure 3-45. Cable Routing for LSI 2008 SAS Mezzanine Card (1U Node)
Item Cable
From
(LSI 2008 SAS
Mezzanine Card)
To
(System Board)
Mini-SAS
/SGPIO cable
Mini-SAS connector
4~7 (J4)
SAS/SATA input
connectors 4&5 and
SGPIO 2
Mini-SAS
cable
Mini-SAS connector
0~3 (J3)
SAS/SATA input
connector 0

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
