Dell PowerEdge C6220 II Hardware Owner's Manual

Installing System Components | 229

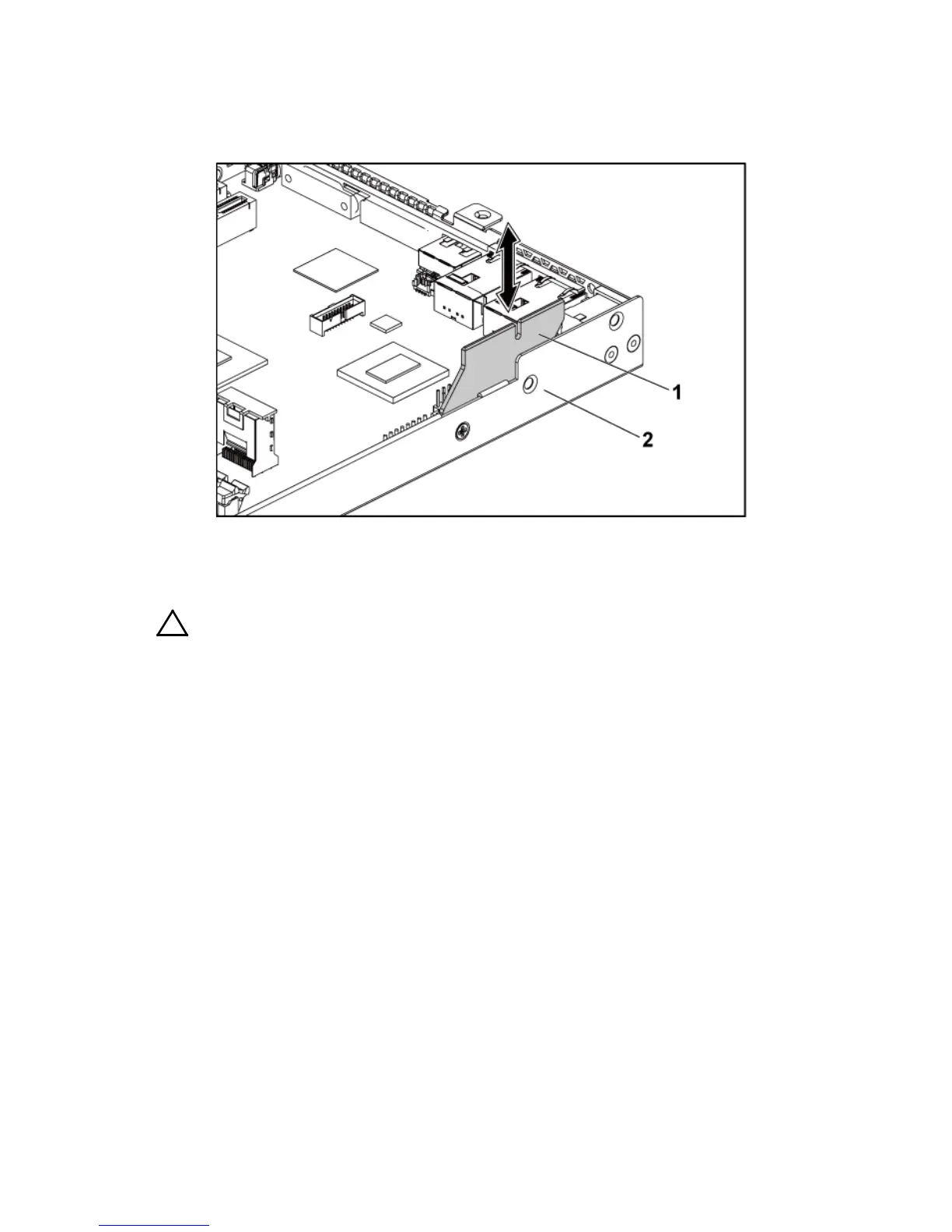

Figure 3-56. Removing and Installing the Mezzanine-Card Bridge Board
1
card bridge board
2
system-board assembly
Installing the Mezzanine-Card Bridge Board
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
1 Install the mezzanine-card bridge board into the mezzanine slot on the
system board. See Figure 3-56.
2 Install the mezzanine card. See "Installing the LSI 2008 SAS
Mezzanine Card" on page 215, “Installing the 1GbE Mezzanine Card”
on page 223 and "Installing the 10GbE Mezzanine Card" on page 227.
3 Install the system-board assembly. See "Installing a System-Board
Assembly" on page 164.
4 Reconnect the system to its electrical outlet and turn on the system,
including any attached peripherals.

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
