Installing System Components | 215

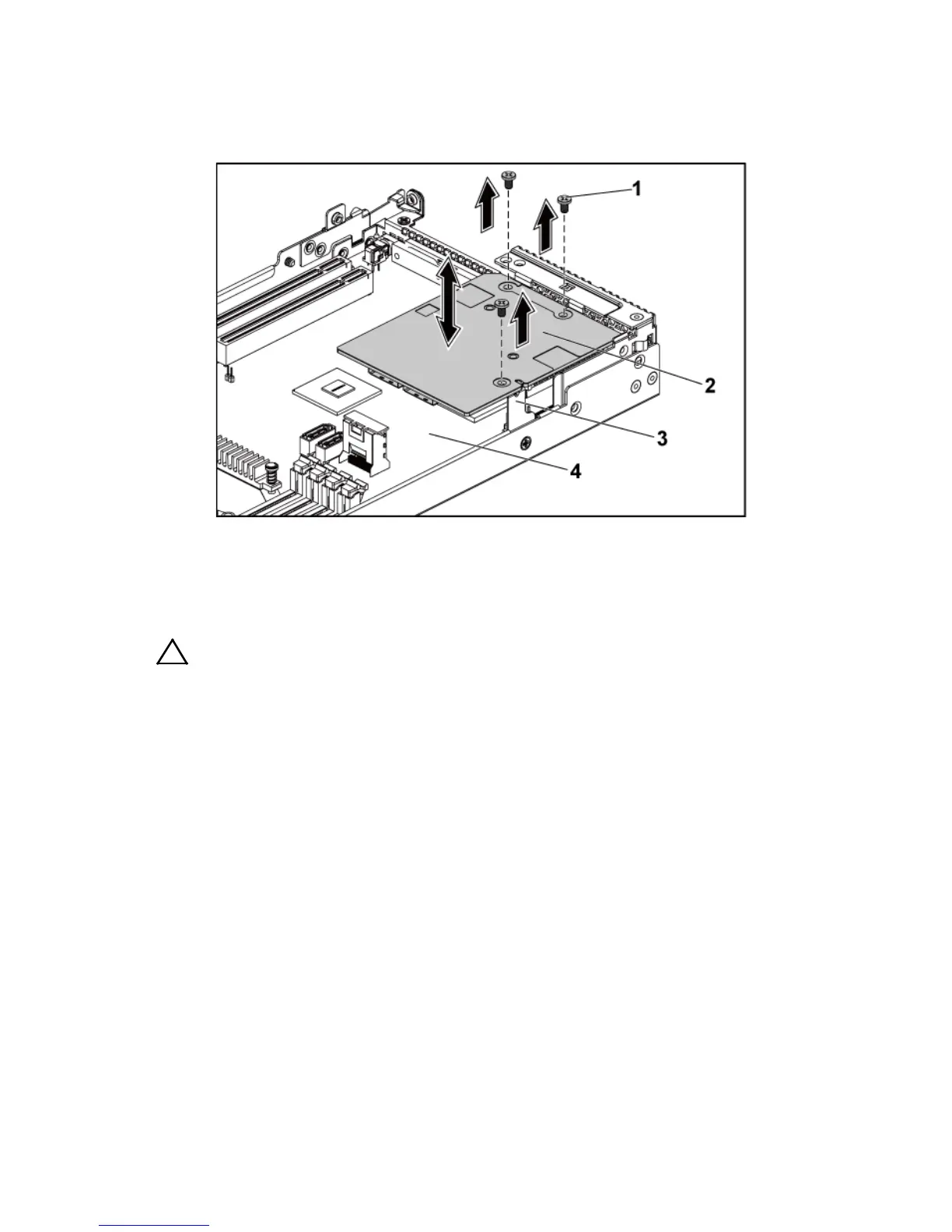

Figure 3-44. Removing and Installing the LSI 2008 SAS Mezzanine Card
1
screw (3)
2
LSI 2008 SAS mezzanine card
3
card bridge card
4
system-board assembly
Installing the LSI 2008 SAS Mezzanine Card
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
1 Place the LSI 2008 SAS mezzanine card on the system-board assembly.
See Figure 3-44 and Figure 5-12.
2 Replace the three screws that secure the LSI 2008 SAS mezzanine card.
See Figure 3-44.
3 Reconnect all the cables to the LSI 2008 SAS mezzanine card.
4 Replace the system-board assembly. See Installing a System-Board
Assemblyon page 164.
