Jumpers and Connectors | 335
Power Distribution Board 2 Connectors

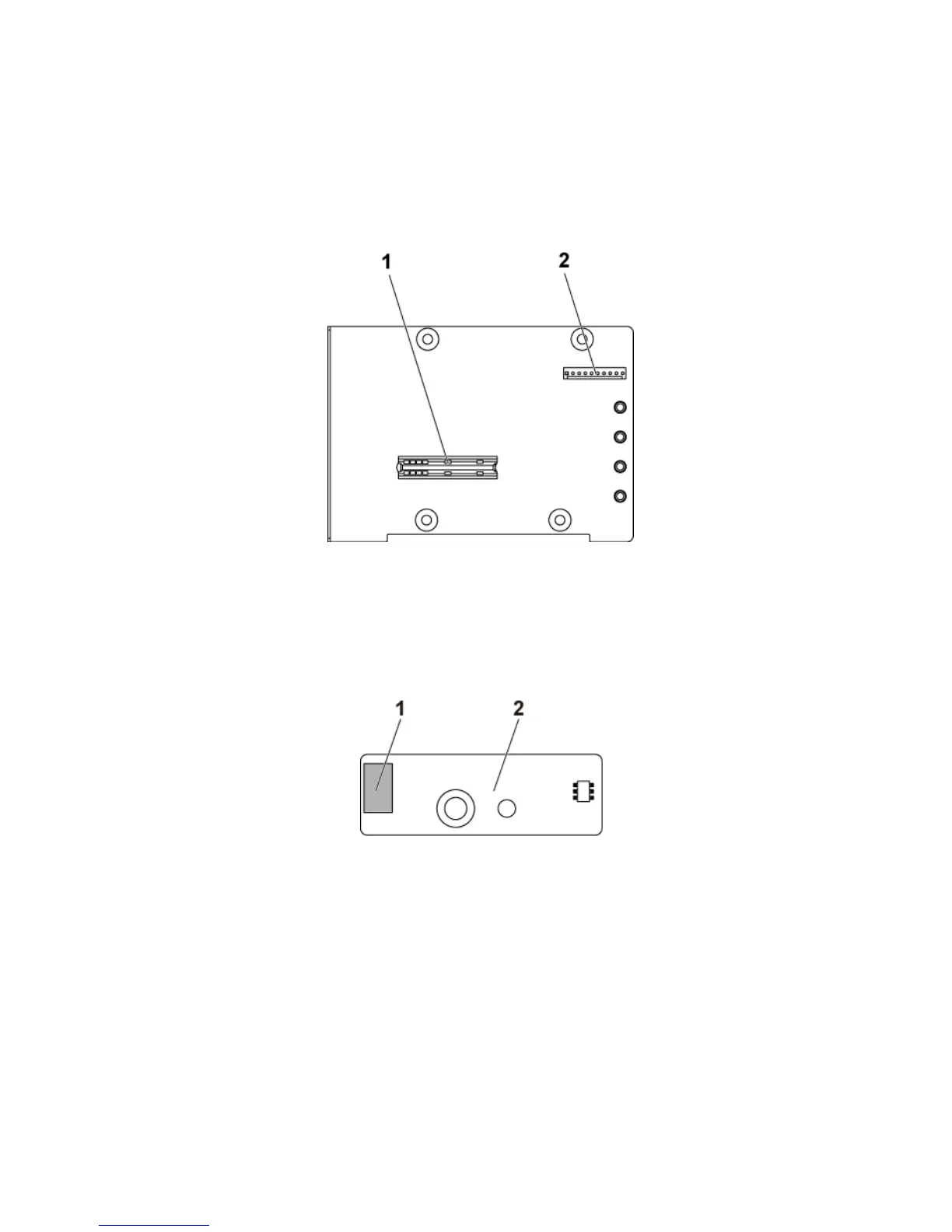

Figure 5-16. Power Distribution Board 2 Connectors
1
bridge card connector
2
1x10pin control connector
Sensor Board Connectors
Figure 5-17. Sensor Board Connectors
1
power connector
2
sensor board
