Dell PowerEdge C6220 II - Installing the LSI 9265-8 I RAID Battery

Installing System Components | 205
Interposer Extender Tray” on page 174.
6 Remove the LSI 9265-8i RAID battery assembly. See “Removing the
LSI 9265-8i RAID battery Assembly” on page 202.
7 Remove the screws securing the LSI 9265-8i RAID battery to the
LSI9265-8i RAID battery carrier. See Figure 3-35.
Lift the LSI 9265-8i RAID battery carrier away from the LSI9265-8i
RAID battery carrier. See Figure 3-35.

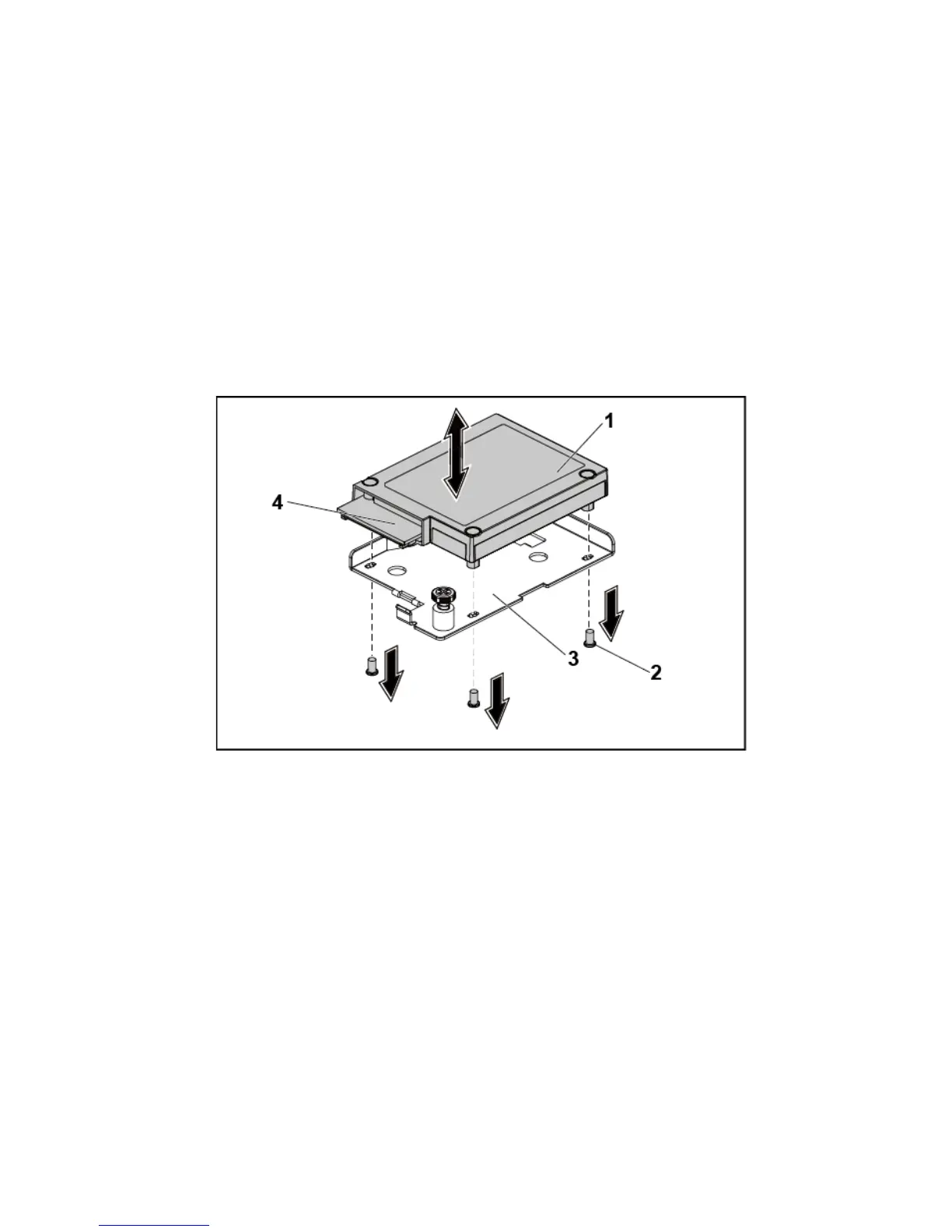

Figure 3-35. Removing and Installing the LSI 9265-8i RAID Battery
1
LSI 9265-8i RAID battery
2
screw (3)
3
LSI 9265-8i RAID battery carrier
4
RAID battery connector
Installing the LSI 9265-8i RAID Battery
1 Place the LSI 9265-8i RAID battery in position on the LSI 9265-8i
RAID battery carrier. See Figure 3-35.
2 Replace the screws securing the LSI 9265-8i RAID battery to the LSI
9265-8i RAID battery carrier. See Figure 3-35.
3 Install the LSI 9265-8i RAID battery assembly. See “Installing the LSI
9265-8i RAID Battery Assembly” on page 204.
4 Reconnecting the cable connecting to the LSI 9265-8i card.
