Dell PowerEdge C6220 II Hardware Owner's Manual

322 | Jumpers and Connectors
19
processor 1
20
DIMM slots for processor 1
21
PWRD_EN jumper
22
PCI-E Gen3 x16 slot 2
23
PCI-E Gen3 x16 slot 1
24
NCSI CN connector
25
power button/power&system LED
26
VGA port
27
serial port
28
management port
29
LAN connector 2
30
LAN connector 1
31
ID LED
32
dual USB port

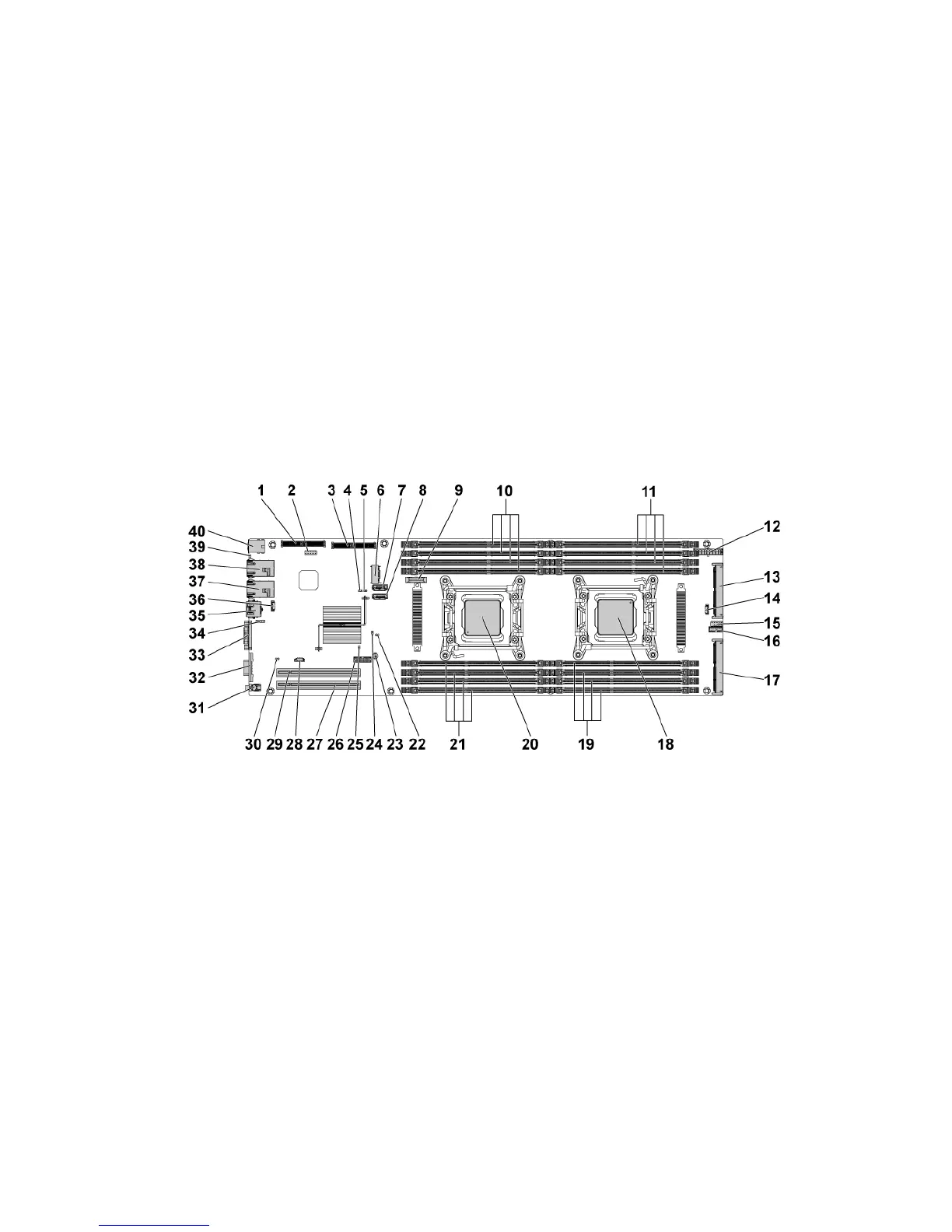

C6220 System Board Connectors
Figure 5-2. C6220 System Board Connectors
1
PCI-E Gen3 x8 mezzanine slot 3
2
internal USB connector
3
internal SAS mezzanine slot
4
service mode jumper
5
NVRAM clear jumper
6
mini-SAS connector 0
7
onboard SATA connector 4
8
onboard SATA Connector 5
9
system battery
10
DIMM slots for processor 1
11
DIMM slots for processor 2
12
main power connector
13
middle plane connector
14
SGPIO connector 2
15
internal serial connector
16
front panel connector 1
17
PCI-E x16 slot 4
18
processor 2

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
