Installing System Components | 241
Cable Routing for Onboard SATA Cables (1U Node)
1 Connect the onboard SATA cables to the system board, and connect
the other end of the cable to the corresponding connectors on the
system board. See Figure 3-62.

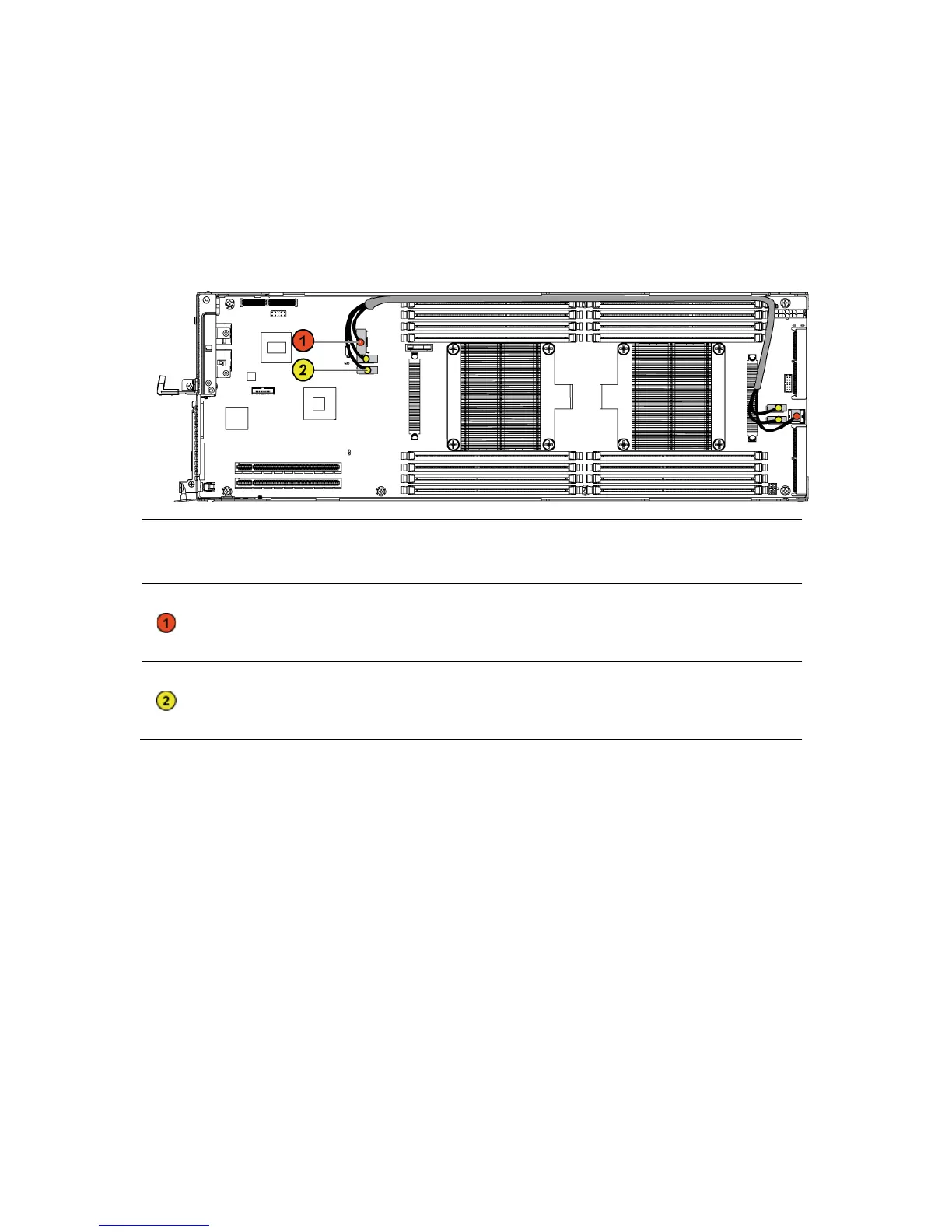

Figure 3-62. Cable Routing for Onboard SATA Cables (1U Node)
Item Cable
From
(System Board)
To
(System Board)
Onboard
SATA
cable
Onboard SATA
output connector 0
SAS/SATA input
connector 0
Onboard
SATA
cable
Onboard SATA
connectors 4&5
SAS/SATA input
connectors 4&5
