About Your System | 33
BMC Heart Beat LED
The system board provides BMC heart beat LED (LED17) for BMC debugs.
The BMC heart beat LED is green. When the system AC power is
connected, the LED lights. When BMC firmware is ready, the BMC heart
beat LED blinks.

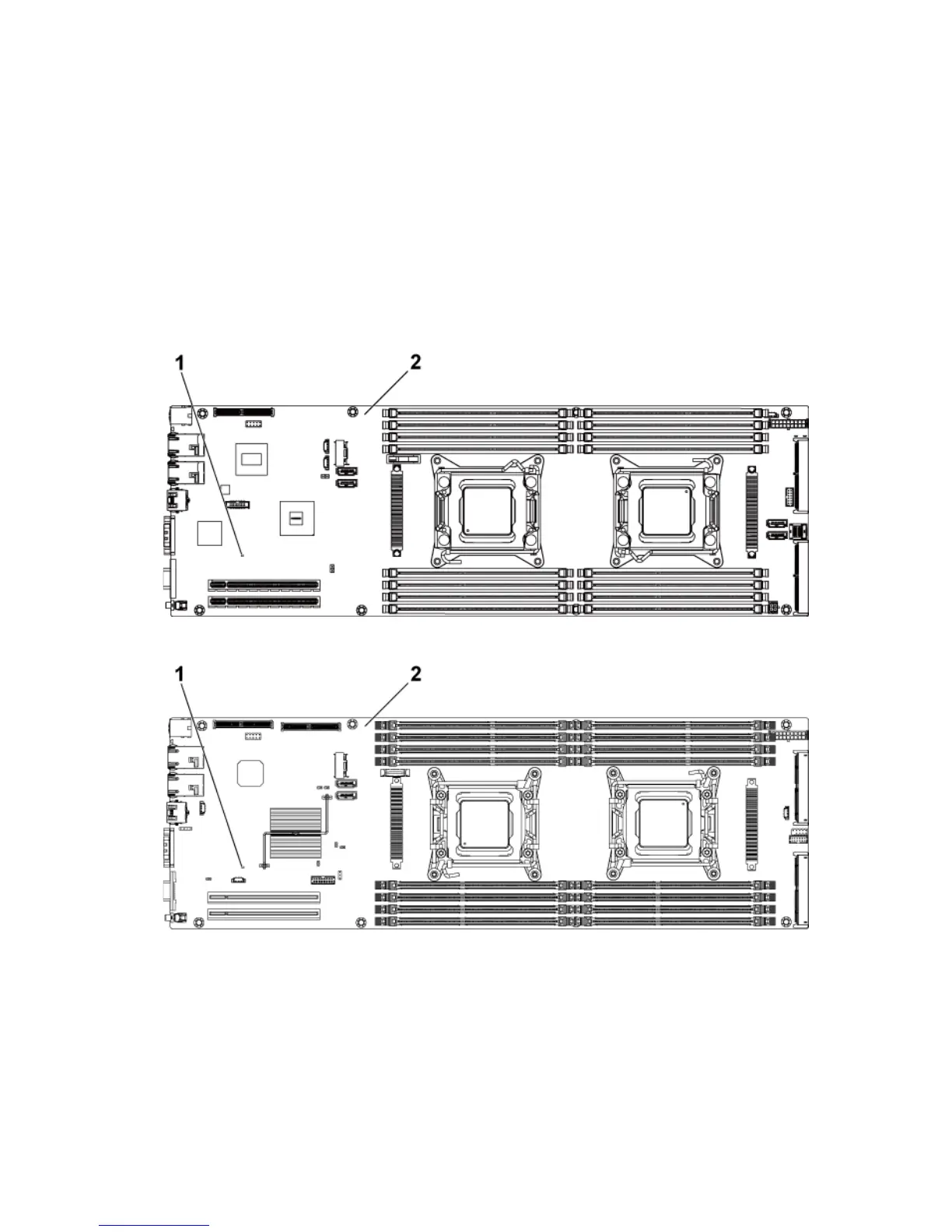

Figure 1-26. BMC Heart Beat LED on the System Board C6220 II
Figure 1-27. BMC Heart Beat LED on the C6220 System Board
1
BMC heart beat LED
2
system board
