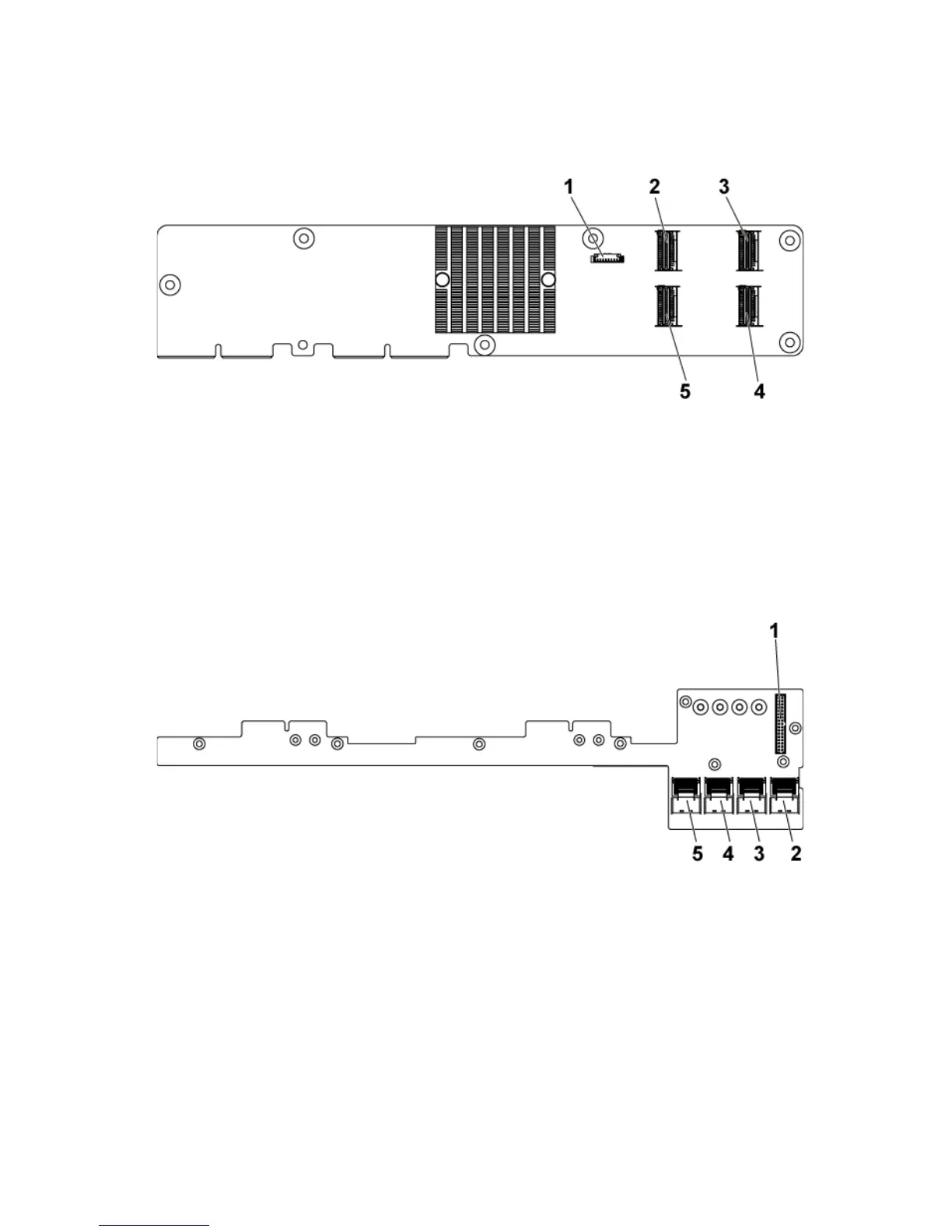

Figure 3-9. Top View of the 2.5” Hard-Drive Expander Card
1
power control connector
2
mini-SAS connector (4~7)
3
mini-SAS connector (12~15)
4
mini-SAS connector (8~11)
5
mini-SAS connector (0~3)
Middle Plane Connectors
Figure 5-10. Middle Plane Connectors
1
2x17pin control connector for power
distribution board 1
2
mini-SAS connector for system
board 3 and 4 (hard drive 5 and 6)
3
mini-SAS connector for system
board 3 and 4 (hard drive 1, 2, 3 and
4)
4
mini-SAS connector for system
board 1 and 2 (hard drive 5 and 6)
5
mini-SAS connector for system
board 1 and 2 (hard drive 1, 2, 3 and
4)
