324 | Jumpers and Connectors
Backplane Connectors
3.5" Hard-Drive Direct Backplane

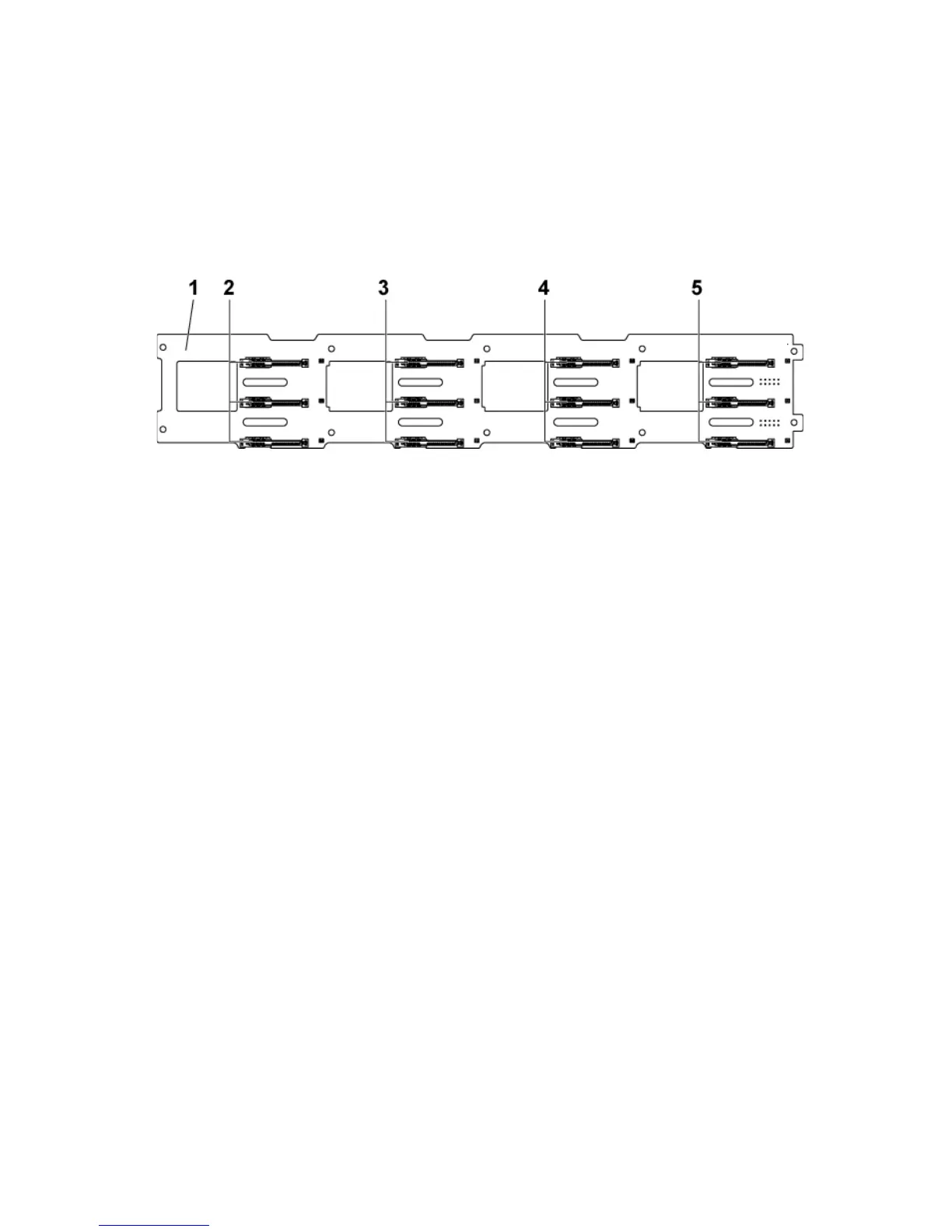

Figure 5-3. Front View of the Backplane
1
3.5” backplane
2
hard drive connectors 1, 2 and 3 for
system board 1 (from top to
bottom)
3
hard drive connectors 1, 2 and 3 for
system board 2 (from top to bottom)
4
hard drive connectors 1, 2 and 3 for
system board 3 (from top to
bottom)
5
hard drive connectors 1, 2 and 3 for
system board 4 (from top to bottom)
