Dell PowerEdge C6220 II - Closing the System

Installing System Components | 247
4 Grasp cover on both the sides with your palm on the traction pad, slide
out and lift the cover away from the system. See Figure 3-67.

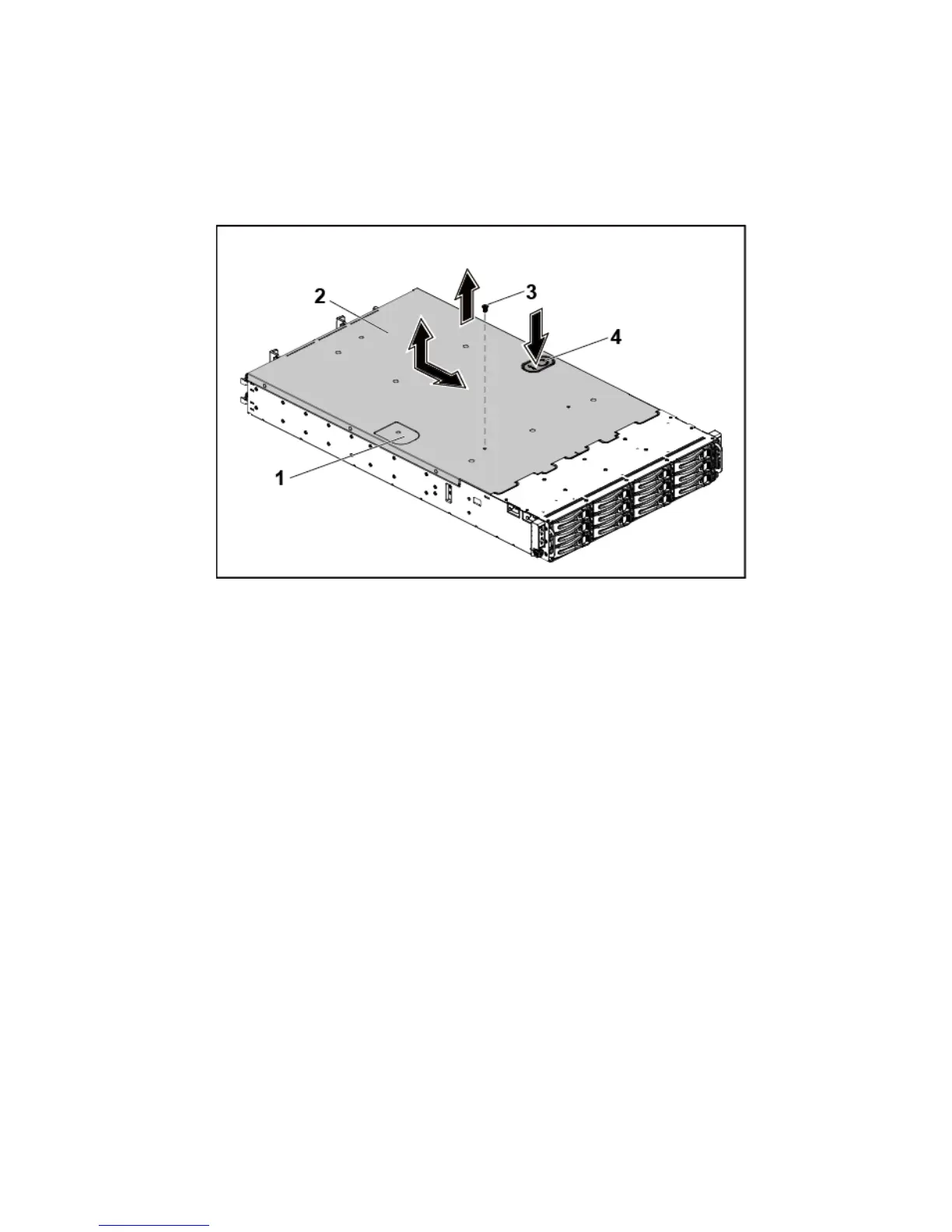

Figure 3-67. Opening and Closing the System
1
traction pad
2
system cover
3
securing screw
4
cover release latch lock
Closing the System
1 Place the cover on the chassis and slide it to the front of the chassis
until it snaps into place. See Figure 3-67.
2 Secure the cover with the securing screw. See Figure 3-67.
