Dell PowerEdge C6220 II Hardware Owner's Manual

Installing System Components | 227
7 Remove the two screws that secure the 10GbE mezzanine card to the
bracket. See Figure 3-55.
8 Remove the 10GbE mezzanine card from the bracket. See Figure 3-55.

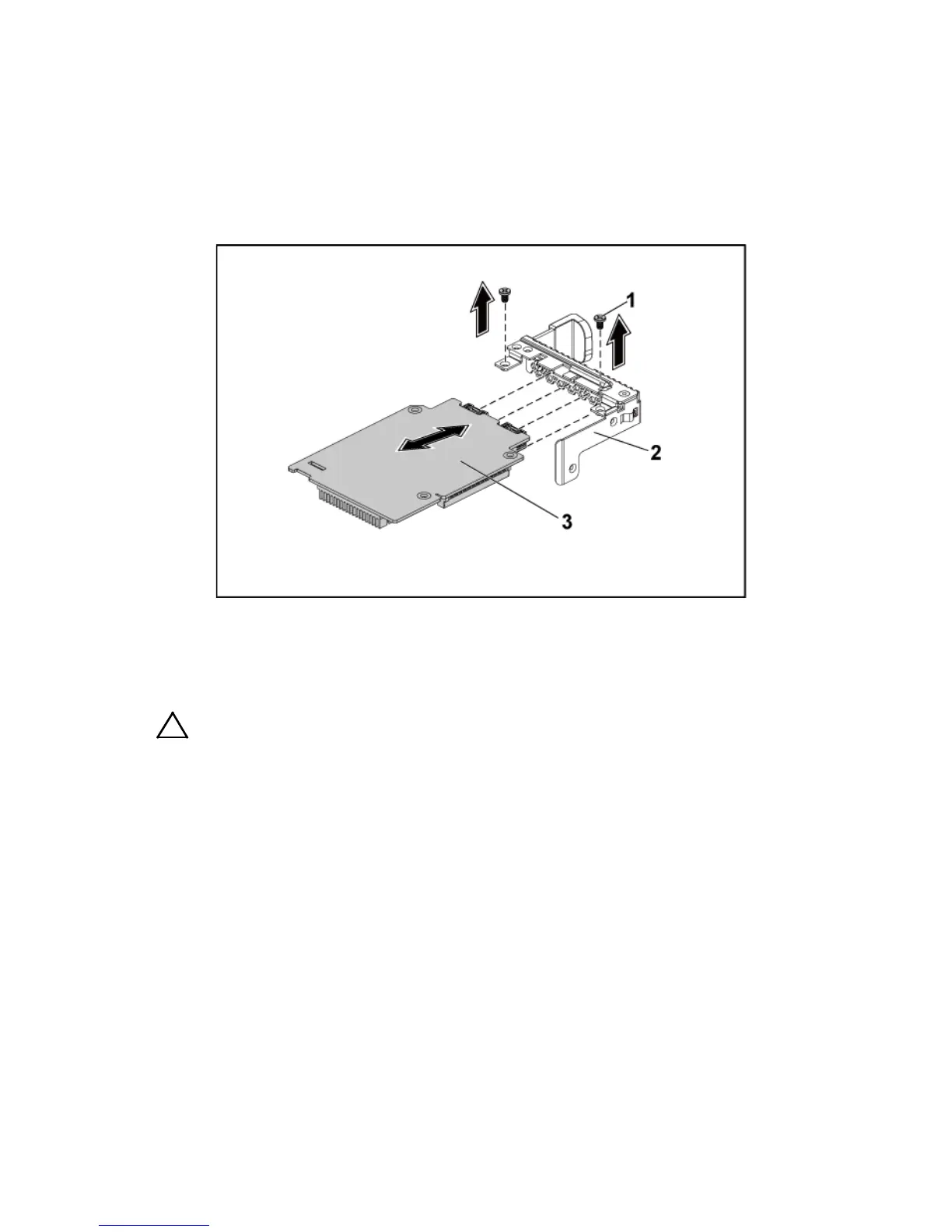

Figure 3-55. Removing and Installing the 10GbE Mezzanine Card
1
screw (2)
2
mezzanine card bracket
3
10GbE mezzanine card
Installing the 10GbE Mezzanine Card
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
1 Attach the 10GbE mezzanine card to the bracket by aligning the four
ports to the corresponding port slots on the bracket. See Figure 3-55.
2 Install the screws to secure the 10GbE mezzanine card to the bracket.
See Figure 3-55.
3 Install the 10GbE mezzanine card assembly to the card bridge board on
the system-board assembly. See Figure 3-54.
4 Install the screws to secure the 10GbE mezzanine card assembly to the

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
