Dell PowerEdge C6220 II Hardware Owner's Manual

Using the System Setup Program | 71

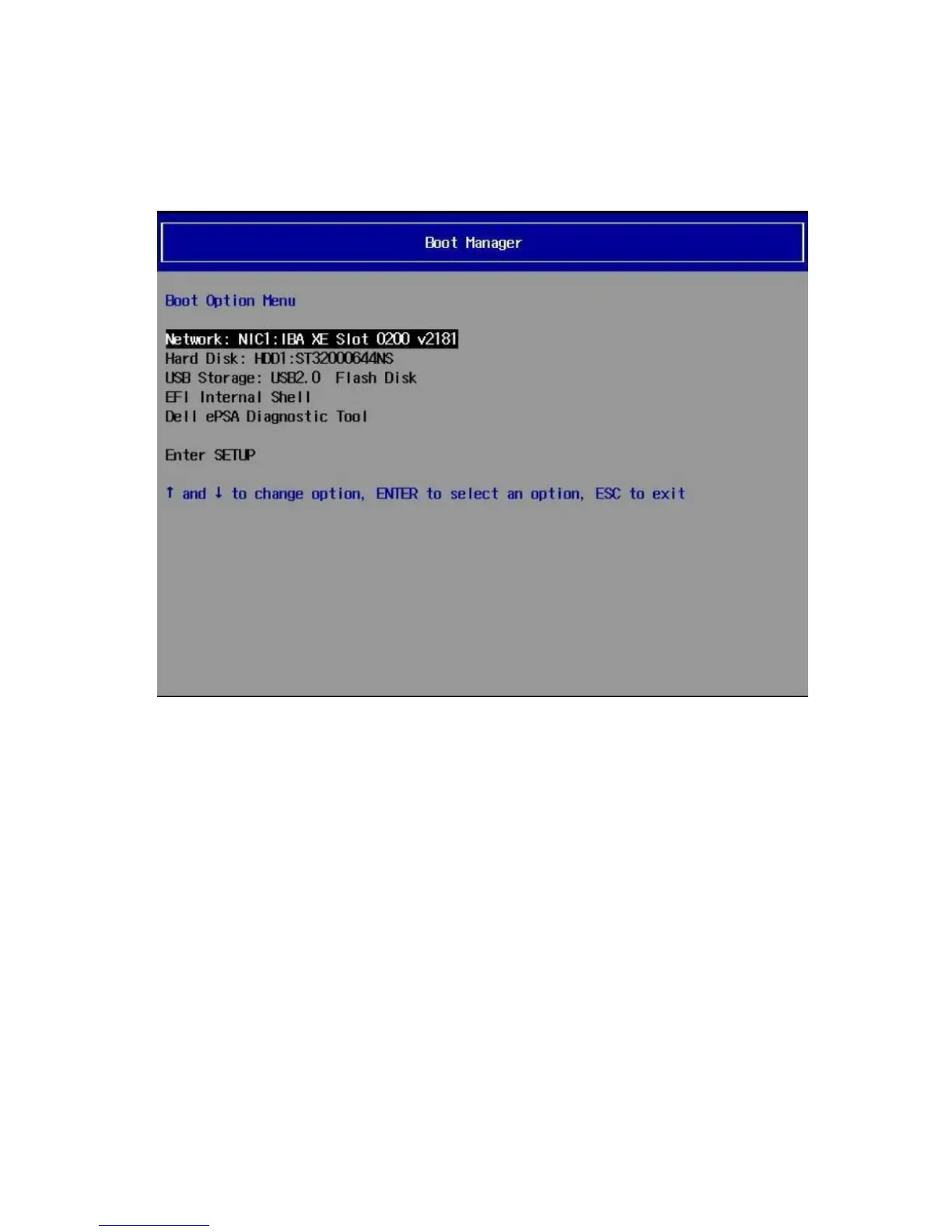

• Boot Manager – Legacy Mode
Console Redirection
The console redirection allows a remote user to diagnose and fix problems
on a server, which has not successfully booted the OS. The centerpiece of
the console redirection is the BIOS Console. The BIOS Console is a Flash
ROM-resident utility that redirects input and output over a serial or
modem connection.
The BIOS supports console redirection to a serial port. If serial port based
headless server support is provided by the system, the system must provide
support for redirection of all BIOS driven console I/O to the serial port. The
driver for the serial console must be capable of supporting the functionality
documented in the ANSI Terminal Definition.

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
