Dell PowerEdge C6220 II Hardware Owner's Manual

338 | Jumpers and Connectors
Direct Backplane Jumper Settings
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came with
the product.
The function of jumpers installed on 3.5" HDD direct backplane and 2.5"
HDD direct backplane is the same. Following is an example using the
jumpers installed on 3.5" HDD direct backplane.

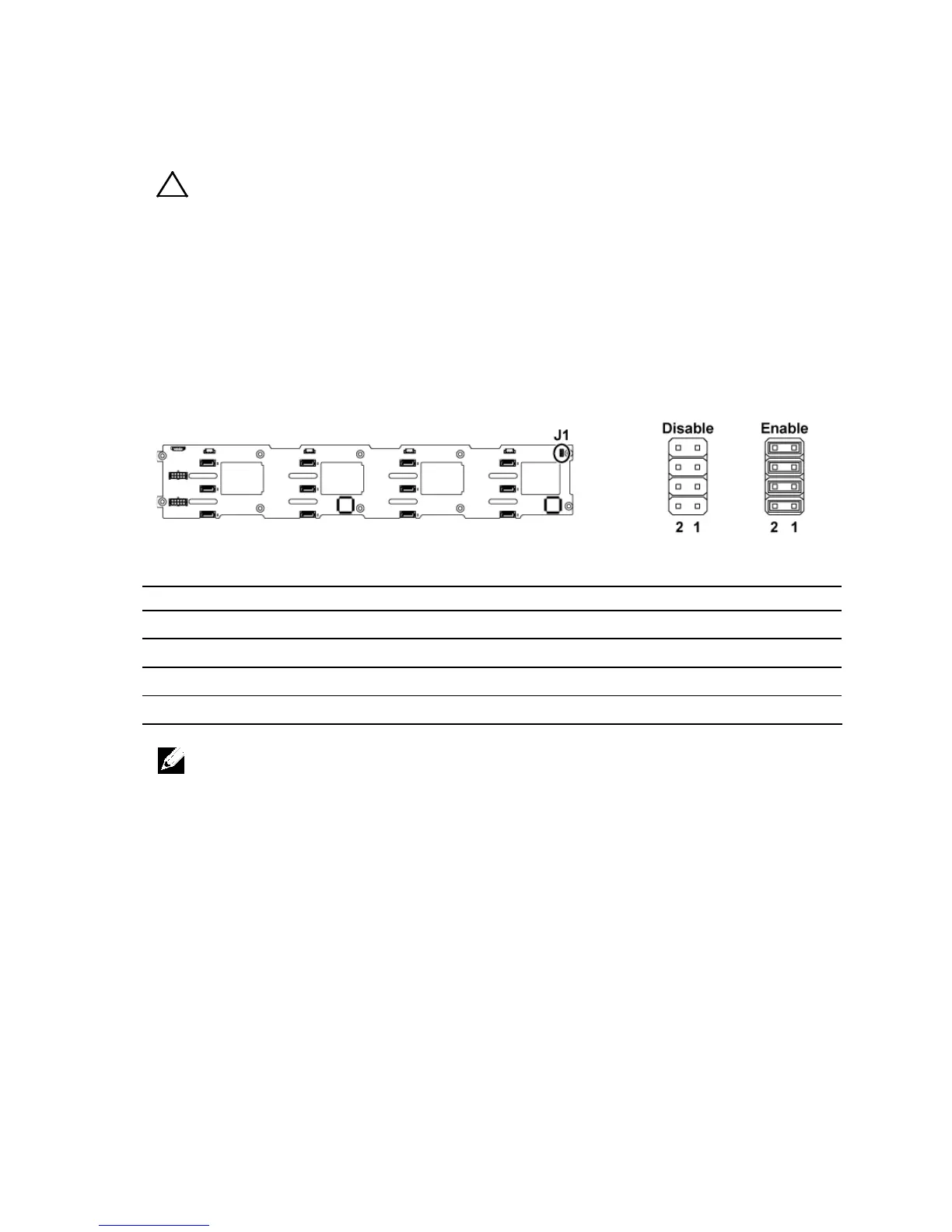

Figure 5-20. Jumper Installed on Direct Backplane
Table 5-3. Jumpers Installed on Direct Backplane
Jumper
Function
Off
On
SW1 (pin1-2) Reserved *Disable
Enable
SW2 (pin3-4) Reserved *Disable
Enable
SW3 (pin5-6) SGPIO I
2
C Select *Disable
Enable
SW4 (pin7-8) MFG Test *Disable
Enable
NOTE:
The * in the table of direct backplane jumper describes the default status
and the default state is not active state.

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
