Dell PowerEdge C6220 II Hardware Owner's Manual

Installing System Components | 213
6 Install the expansion card. See “Installing the Expansion Card for 2U
Node” on page 183.
7 Replace the system-board assembly. See “Installing a System-Board
Assembly” on page 164.
Cable Routing for Riser Card (2U Node)
1 Connect the USB cable to the 2U riser card, and connect the other end
of the cable to the corresponding connectors on the system board. See
Figure 3-43.

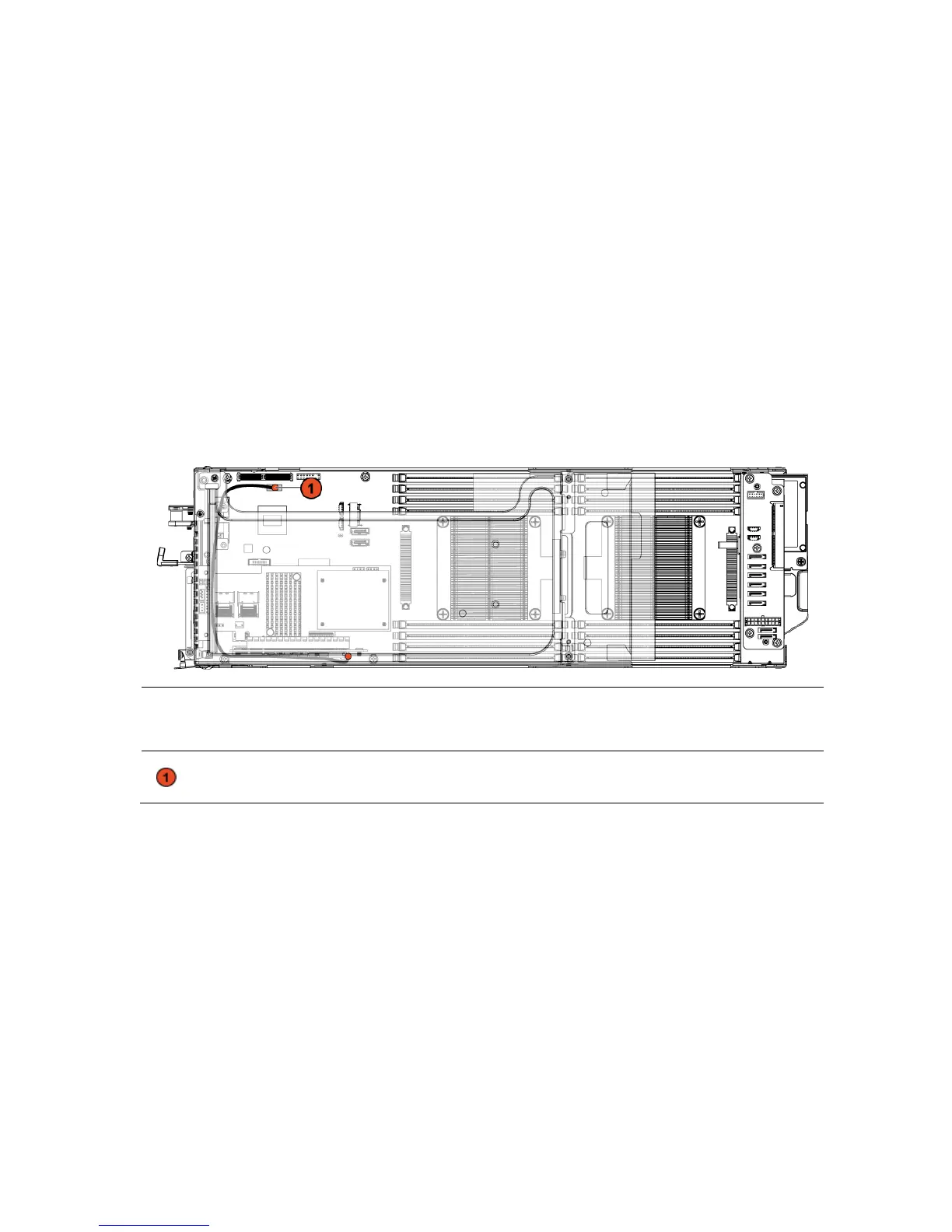

Figure 3-43. Cable Routing for 2U Riser Card USB Cable
Item
Cable
From
(Riser Card)
To
(System Board)
USB cable
USB connector
internal USB
connector

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
