Dell PowerEdge C6220 II Hardware Owner's Manual

Installing System Components | 243
Cable Routing for Onboard SATA Cables (2U Node with 3.5” HDDs)
1 Connect the onboard SATA cable to the system board, and connect
the other end of the cable to the corresponding connectors on the
other side of the system board. See Figure 3-64.
2 Connect the onboard SATA cable to the system board, and connect
the other end of the cable to the corresponding connectors on the
interposer extender for 2U node. See Figure 3-64.
3 Connect the power cable to the system board, and connect the other
end of the cable to the corresponding connector on the interposer
extender for 2U node. See Figure 3-64.

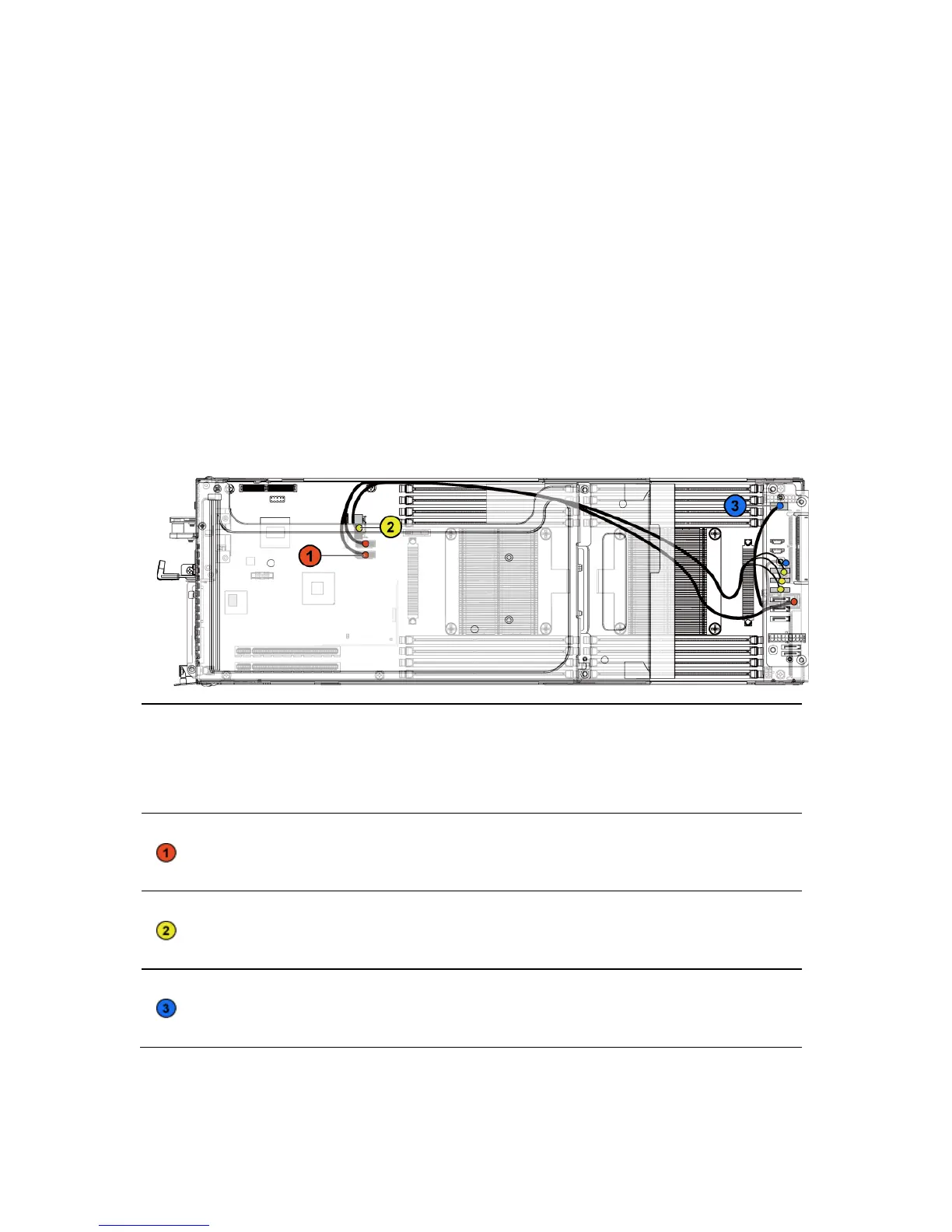

Figure 3-64. Cable Routing for Onboard SATA Cables (2U Node with 3.5” HDDs)
Item Cable
From
(System Board)
To
(Interposer Extender for
2U Node and System
Board)
Onboard
SATA
cable
Onboard SATA
connectors 4&5
SAS/SATA input
connector 0 on the
system board
Onboard
SATA
cable
Onboard SATA
output connector 0
SATAII connectors
0~2 on the interposer
extender for 2U node
Power cable
Front panel connector
Control connector (J3)
on the interposer
extender for 2U node

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
