242 | Installing System Components
2 Press down on the cables, and ensure the cables are routed lower than
the height of the CPU heat sinks.

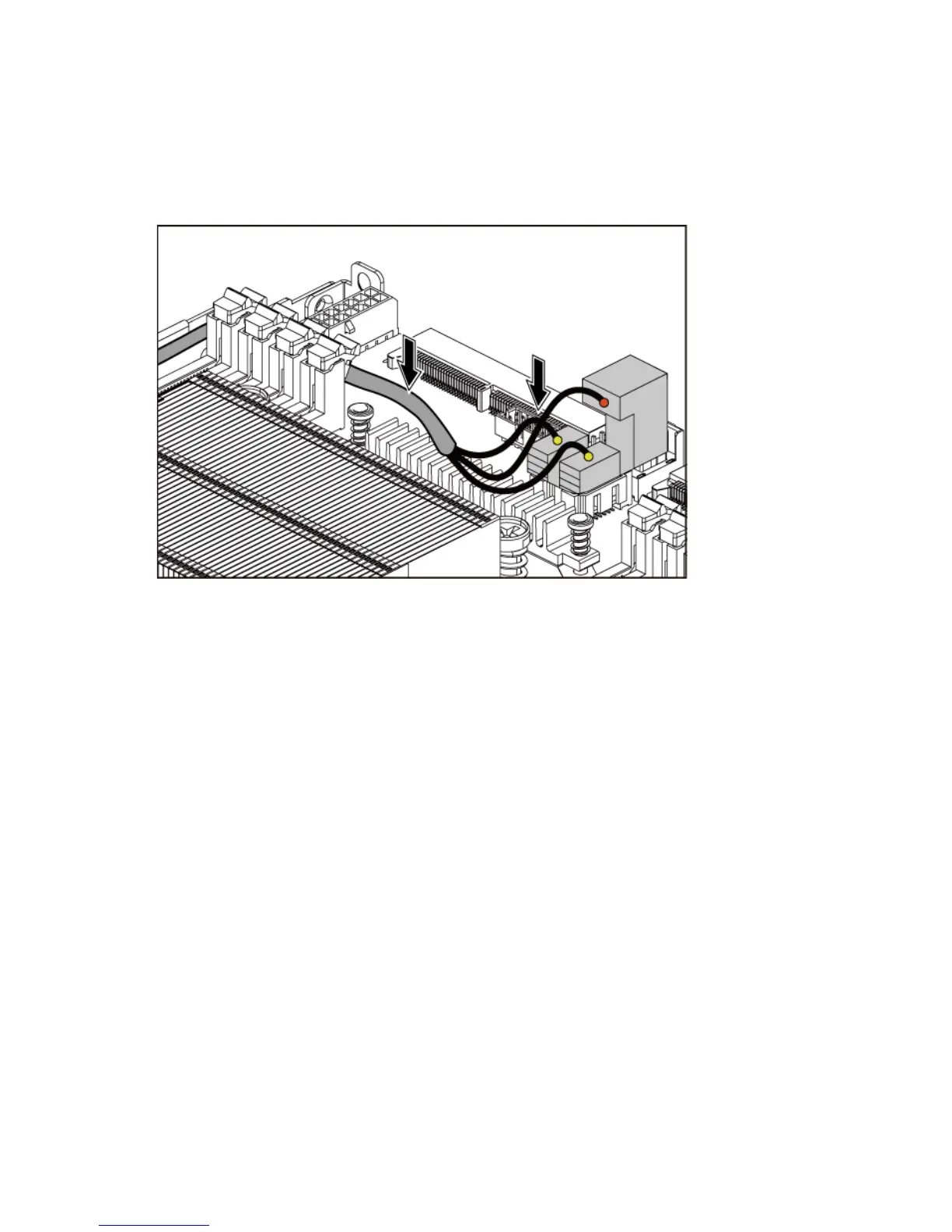

Figure 3-63. Cable Routing Down for Onboard SATA Cables (1U Node)
