Dell PowerEdge C6220 II Hardware Owner's Manual

Jumpers and Connectors | 325

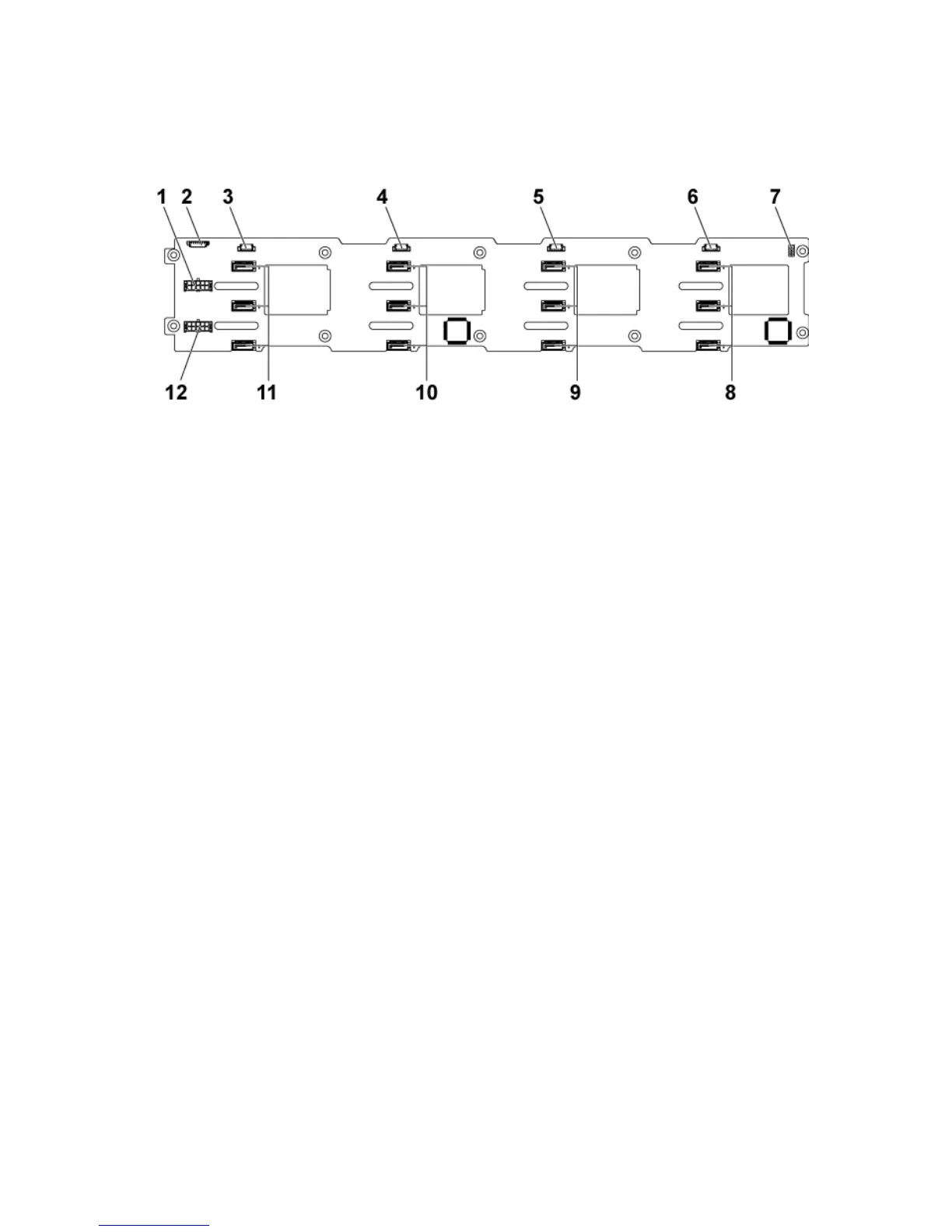

Figure 5-4. Back View of the Backplane
1
backplane power connector for
power supply 1
2
1x8pin fan controller board
connector
3
SGPIO connector 4 for system board
4
4
SGPIO connector 3 for system
board 3
5
SGPIO connector 2 for system board
2
6
SGPIO connector 1 for system
board 1
7
backplane jumper
8
SATA2 and SAS connectors 1, 2
and 3 for system board 1 (from top
to bottom)
9
SATA2 and SAS connectors 1, 2 and
3 for system board 2 (from top to
bottom)
10
SATA2 and SAS connectors 1, 2
and 3 for system board 3 (from top
to bottom)
11
SATA2 and SAS connectors 1, 2 and
3 for system board 4 (from top to
bottom)
12
backplane power connector for
power supply 2

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
