182 | Installing System Components
8 Install the expansion-card slot cover and screw securing the expansion-
card bracket. See Figure 3-22.

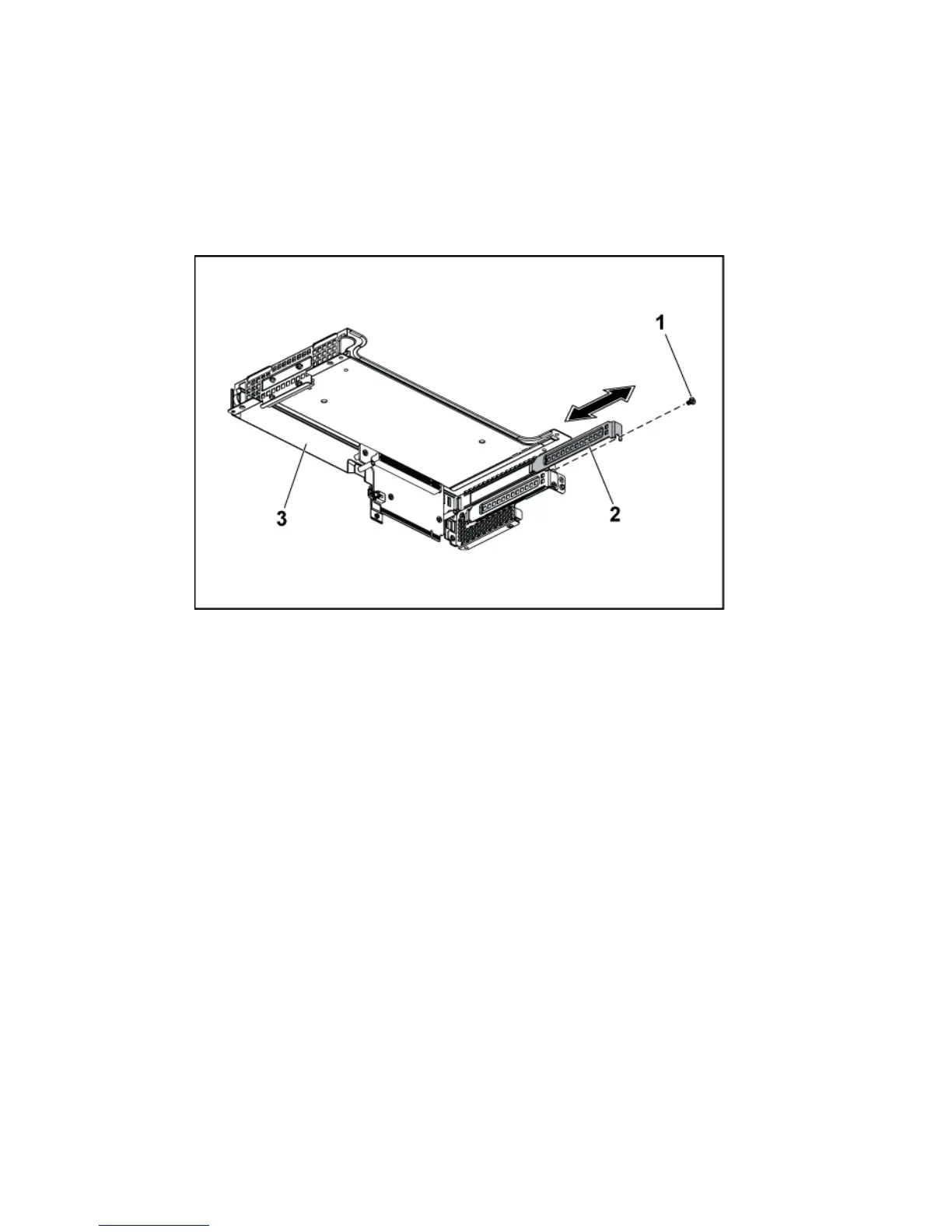

Figure 3-22. Installing the Expansion-card Slot Cover for 2U Node
1
screw
2
expansion-card slot cover
3
expansion-card bracket
