192 | Installing System Components

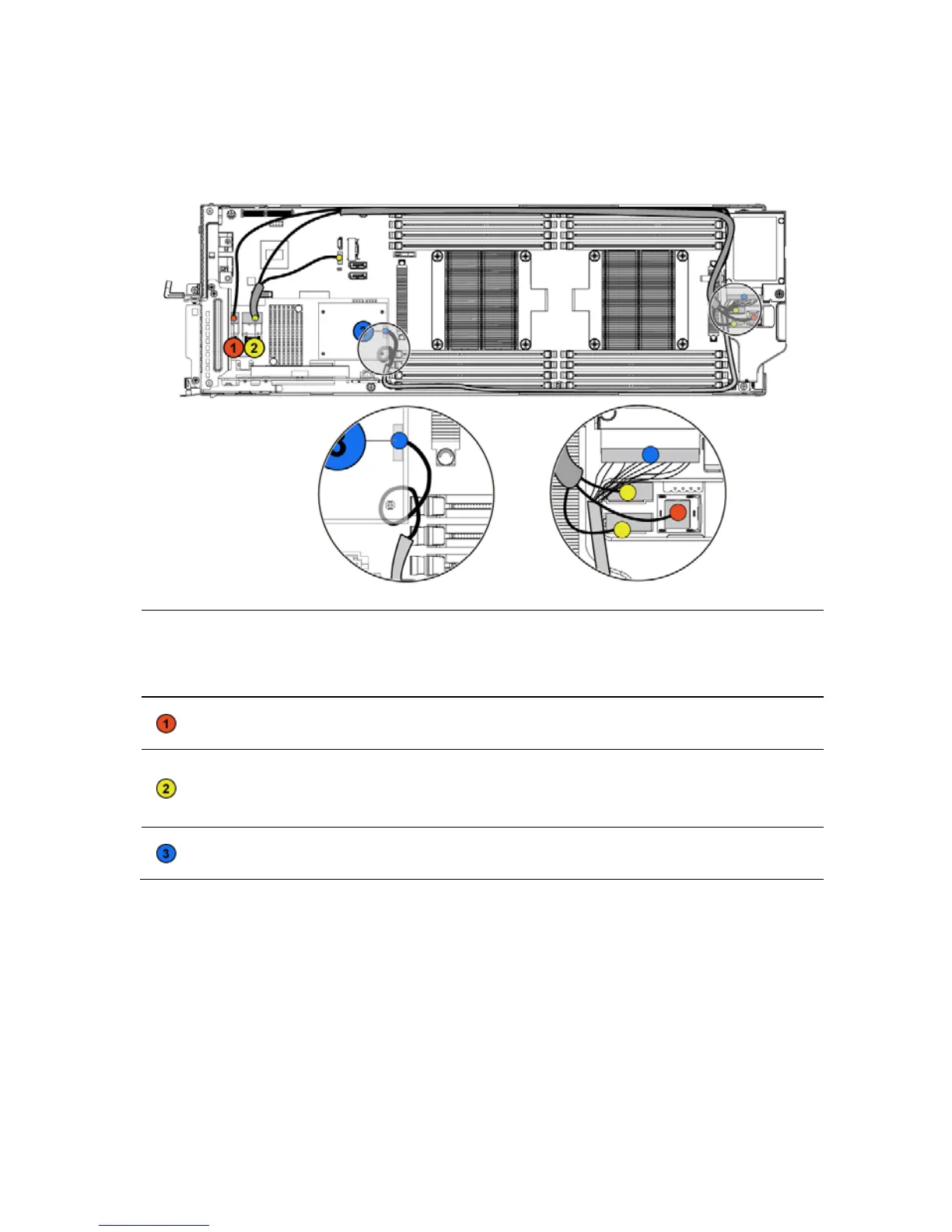

Figure 3-26. Cable Routing for LSI 9265-8i Card (1U Node)
Item
Cable
From
(LSI 9265-8i Card)
To
(RAID Battery and
System Board)
Mini-SAS
cable
Mini-SAS connector
0~3(J2B1)
SAS/SATA input
connector 0
Mini-SAS
/SGPIO cable
Mini-SAS connector
4~7 (J2B2)
SAS/SATA input
connector 4&5 and
SGPIO in 2
RAID battery
cable
RAID battery connector
(J4)
RAID battery
connector
