Installing System Components | 195

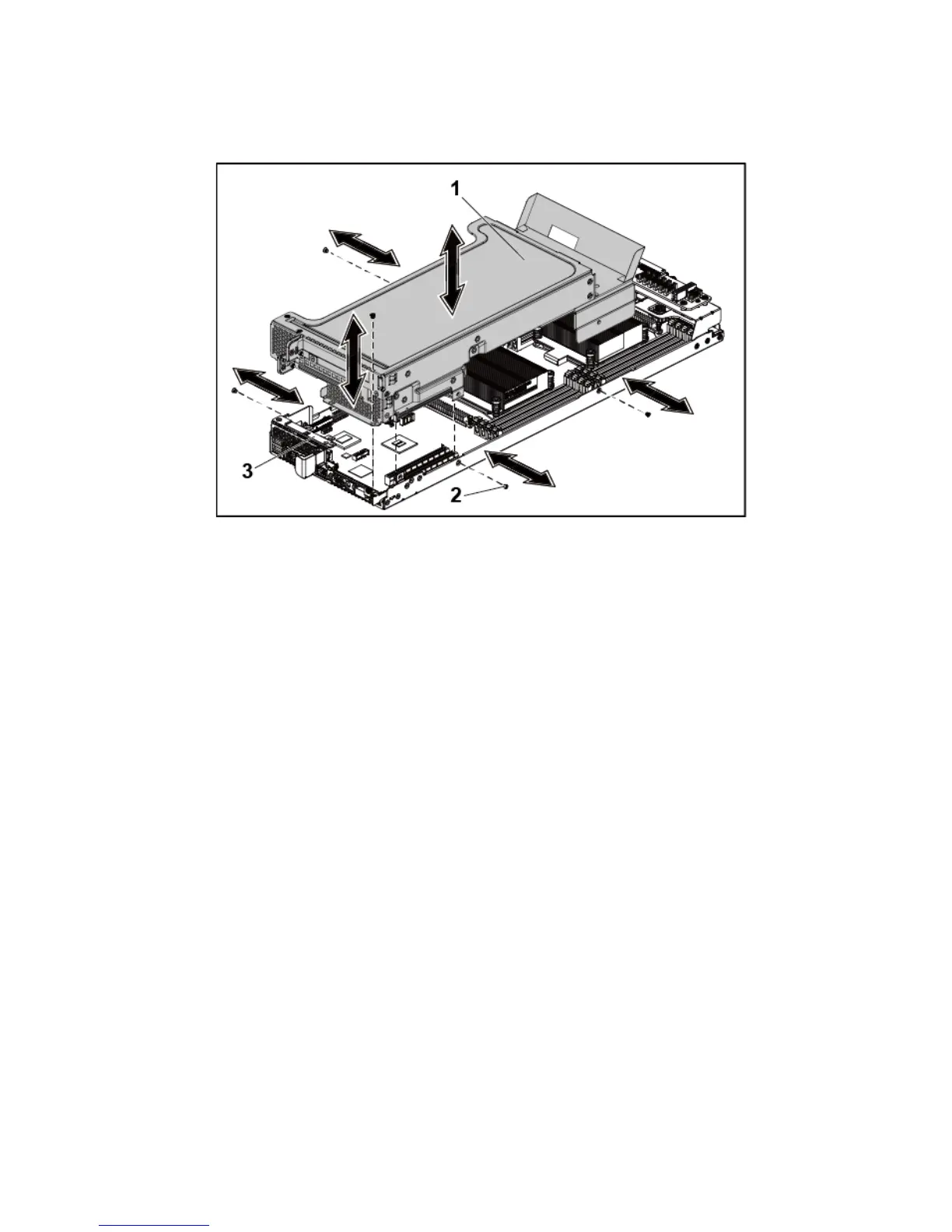

Figure 3-28. Removing the LSI 9265-8i Card Assembly for 2U Node
1
LSI 9265-8i-card assembly
2
screw (5)
3
system-board assembly
5 Remove the four screws securing the LSI 9265-8i card lock cover. See
Figure 3-29.
6 Remove the LSI 9265-8i card lock cover. SeeFigure 3-29.
