218 | Installing System Components

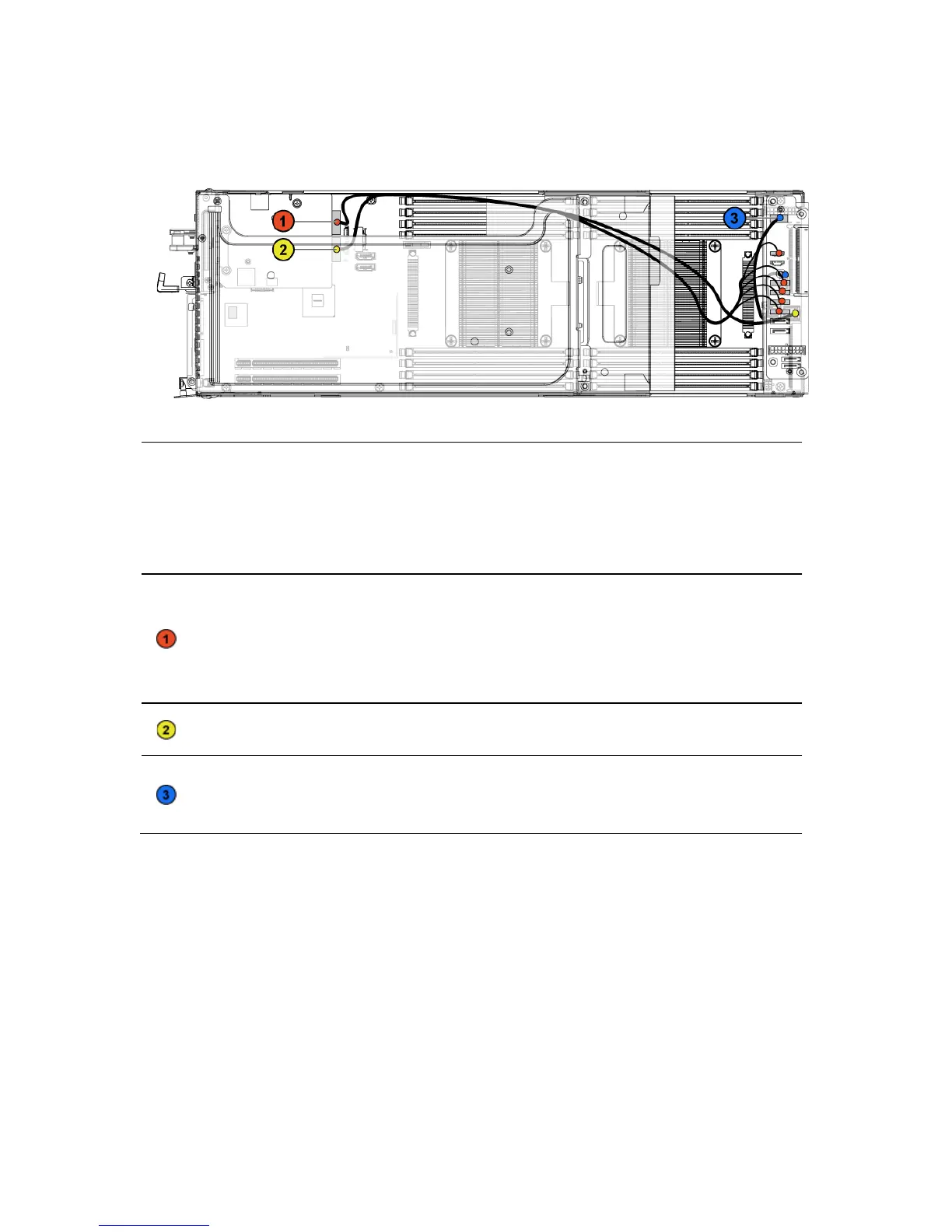

Figure 3-47. Cable Routing for LSI 2008 SAS Mezzanine Card (2U Node)
Item Cable
From
(LSI 2008 SAS
Mezzanine Card)
To
(RAID Battery,
Interposer Extender for
2U Node, and System
Board)
Mini-SAS
/SGPIO cable
Mini-SAS connector
4~7 (J4)
SATAII connectors
0~3 and SGPIO 1
connector on the
interposer extender for
2U node
Mini-SAS
cable
Mini-SAS connector
0~3 (J3)
Mini-SAS in connector
on the system board
Power cable
Control connector
(J3) on the interposer
extender for 2U node
Front panel connector
on the system board
