Dell PowerEdge C6220 II Hardware Owner's Manual

222 | Installing System Components
1
screw (3)
2
expansion-card bracket
3
system-board assembly
5 Remove the screws that secure the 1GbE mezzanine card assembly.
See Figure 3-51.
6 Lift the 1GbE mezzanine card assembly away from the card bridge
board on the system board. See Figure 3-51.

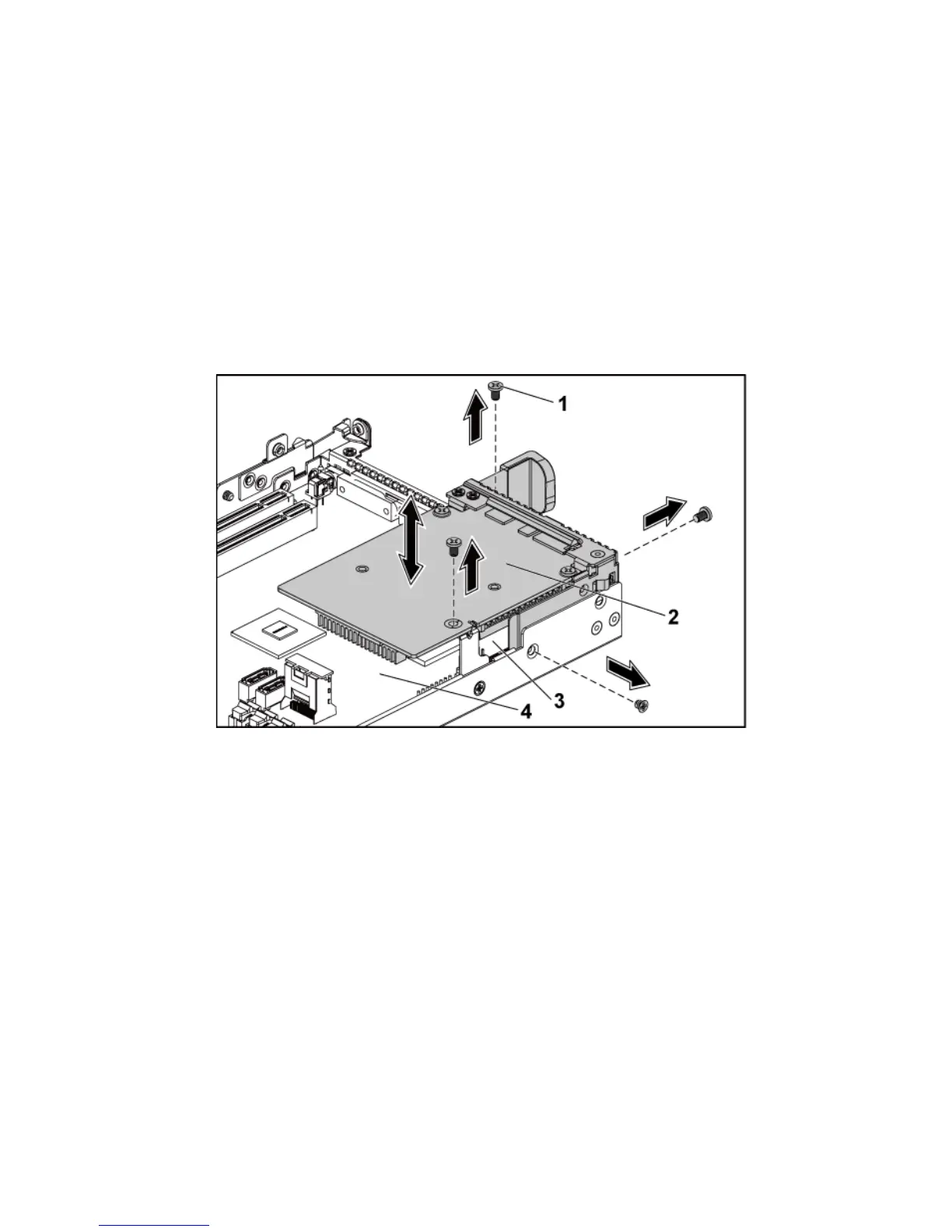

Figure 3-51. Removing and Installing the 1GbE mezzanine card assembly
1
screw (4)
2
1GbE mezzanine card assembly
3
card bridge board
4
system-board assembly

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
