Dell PowerEdge C6220 II Hardware Owner's Manual

About Your System | 23

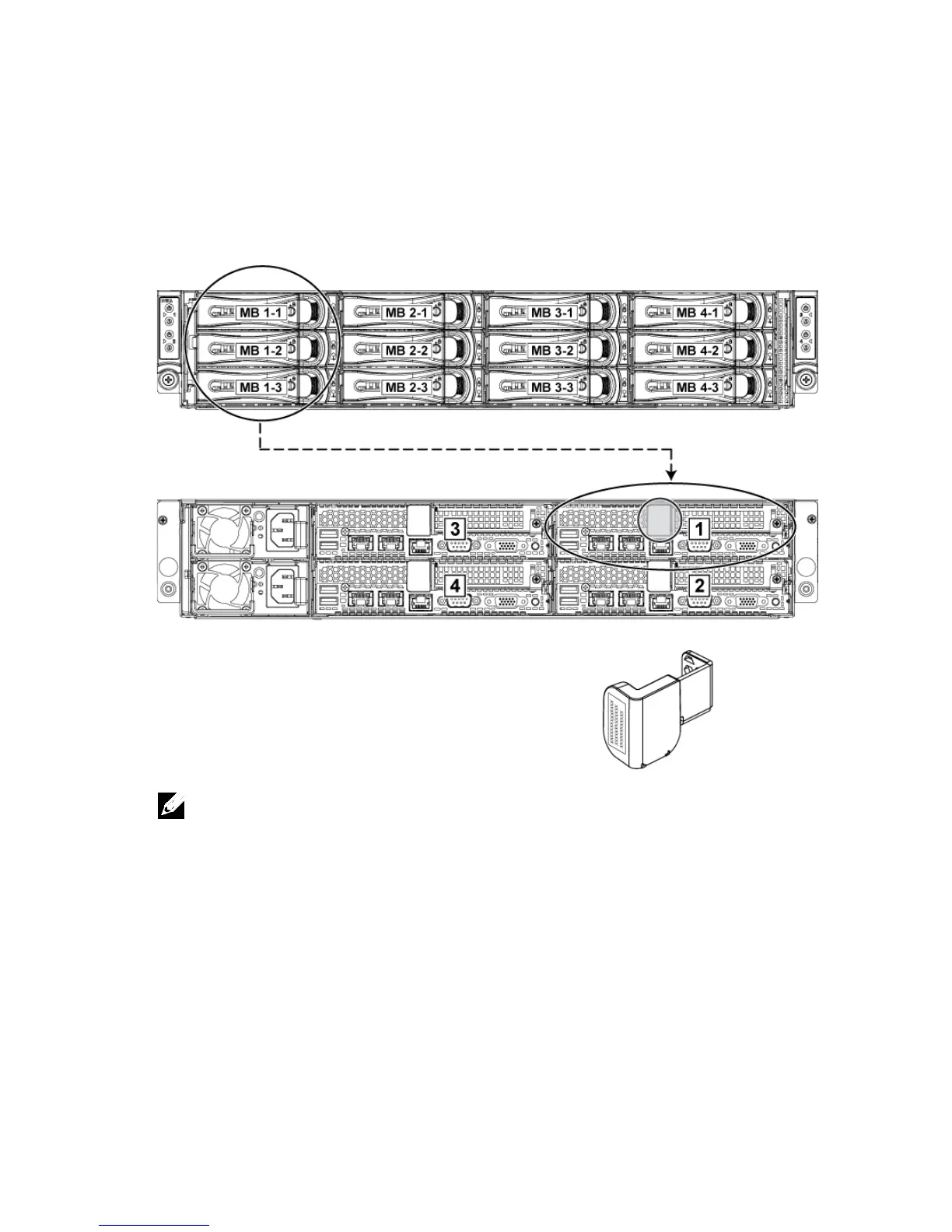

The linkage of 12 hard drives for four system boards is presented as below.
Refer to Front-Panel Features and Indicators on page 14 for other
configurations.
Figure 1-13 Service Tag Linkage
NOTE: HDD’s under warranty would be linked to the appropriate service tag of the
node.

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
