Dell PowerEdge C6220 II Hardware Owner's Manual

Installing System Components | 231

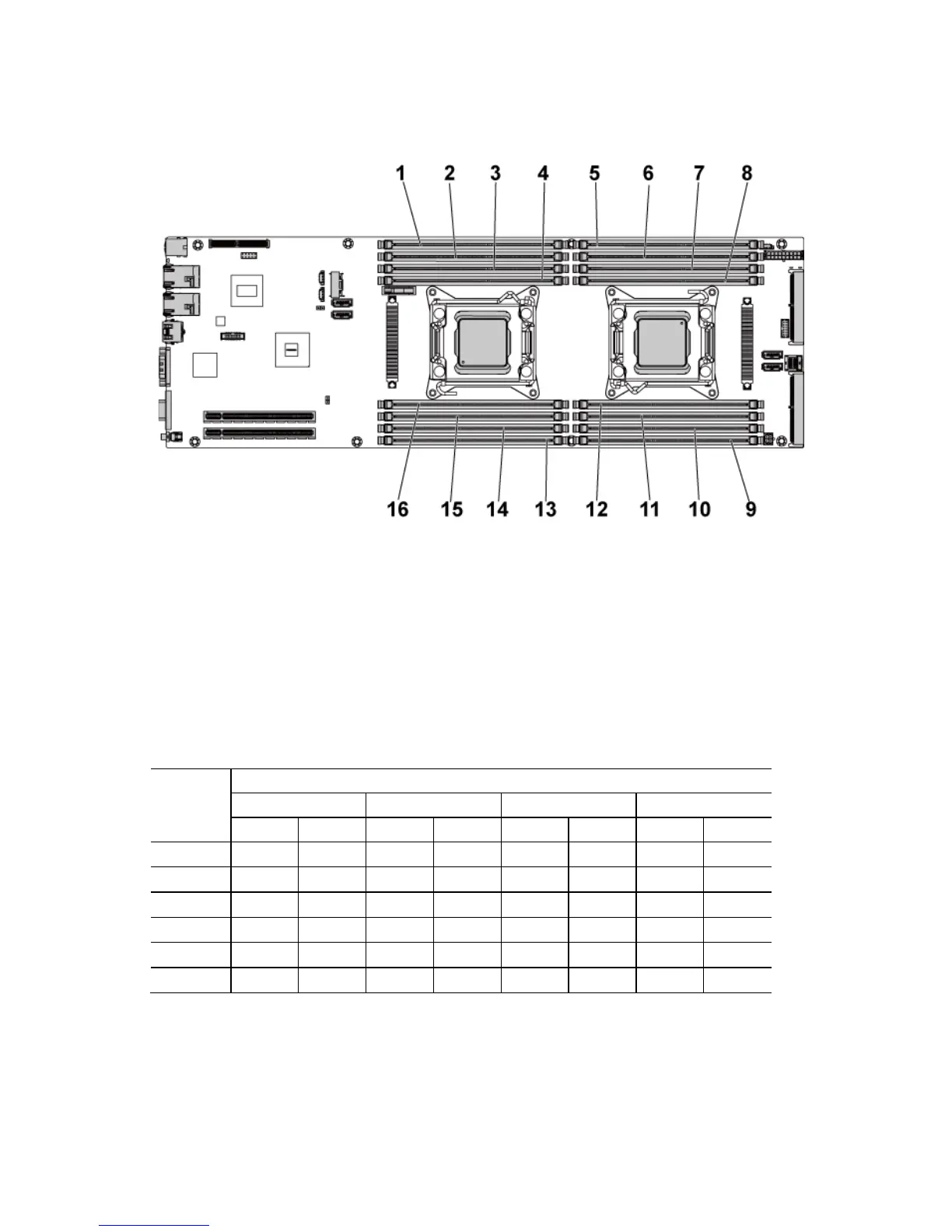

Figure 3-57. DIMM Slot Locations
1
DIMM_A3
2
DIMM_A7
3
DIMM_A4
4
DIMM_A8
5
DIMM_B1
6
DIMM_B5
7
DIMM_B2
8
DIMM_B6
9
DIMM_B3
10
DIMM_B7
11
DIMM_B4
12
DIMM_B8
13
DIMM_A1
14
DIMM_A5
15
DIMM_A2
16
DIMM_A6
Table 3-2. Memory Module Configurations for Single Processor
Memory
Module
Processor 1
CHA
CHB
CHC
CHD
A1
A5
A2
A6
A3
A7
A4
A8
1
√
−
−
−
−
−
−
−
2
√
−
√
−
−
−
−
−
3
√
−
√
−
√
−
−
−
4
√
−
√
−
√
−
√
−
6
√
√
√
√
√
−
√
−
8
√
√
√
√
√
√
√
√

Dell PowerEdge C6220 II Specifications

General

Form Factor	2U Rack
Processor	Intel Xeon E5-2600 v2 series
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Memory	Up to 512GB DDR3 per node
Storage	Up to 24 x 2.5" hot-plug SAS, SATA, or SSD drives
Network	Dual 1GbE, optional 10GbE
Management	Dell Remote Access Controller (iDRAC7) with Lifecycle Controller
Number of Processors	Up to 2 per node (4 total in 2U chassis)
Power Supply	Redundant hot-plug power supplies
