Dell PowerEdge C6220 II - Page 235

Installing System Components | 235

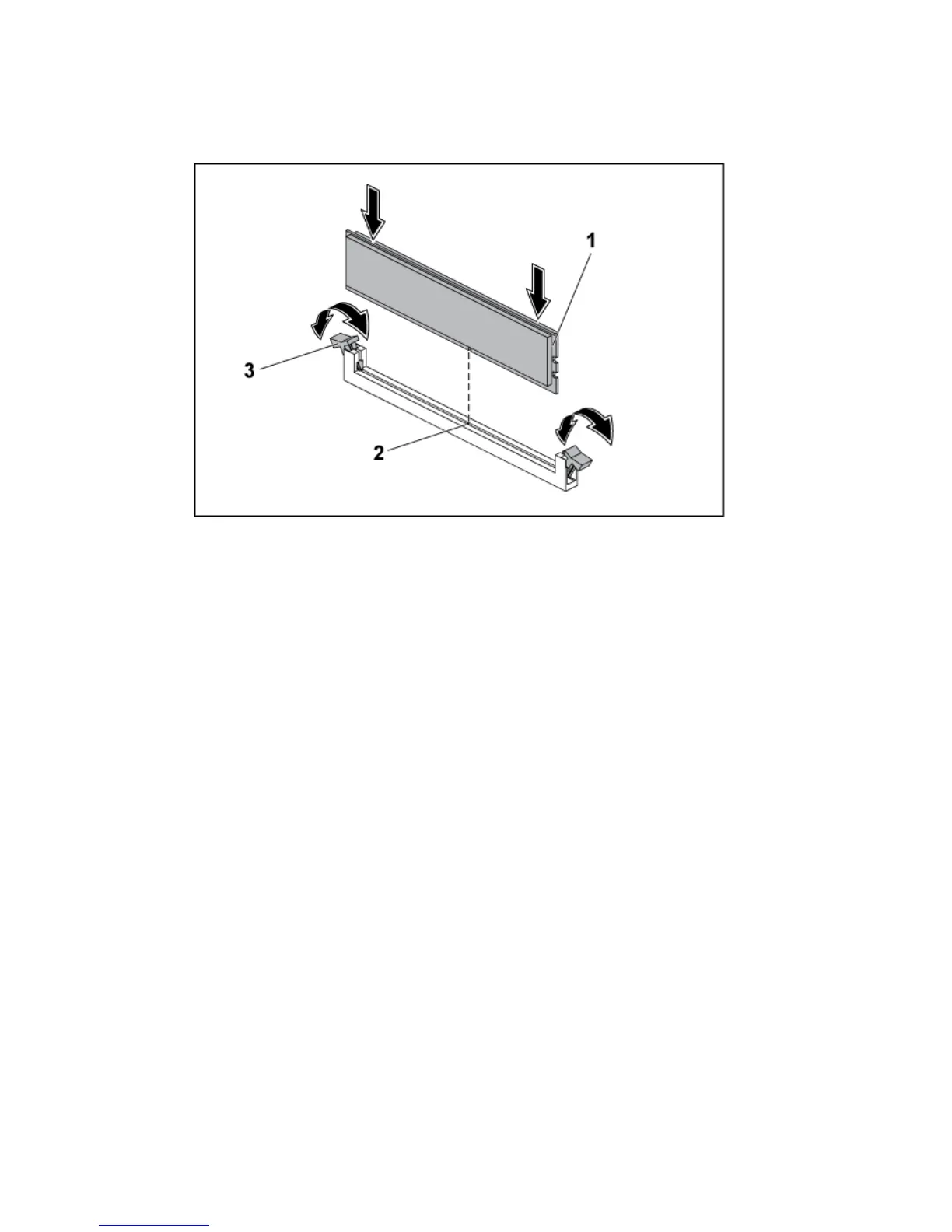

Figure 3-59. Installing a Memory Module
1
memory module
2
alignment key
3
memory module socket ejector (2)
4 Replace the air baffle. See “Installing the Air Baffle ” on page 166.
5 Replace the system-board assembly. See “Installing a System-Board
Assembly” on page 164.
