Installing System Components | 249

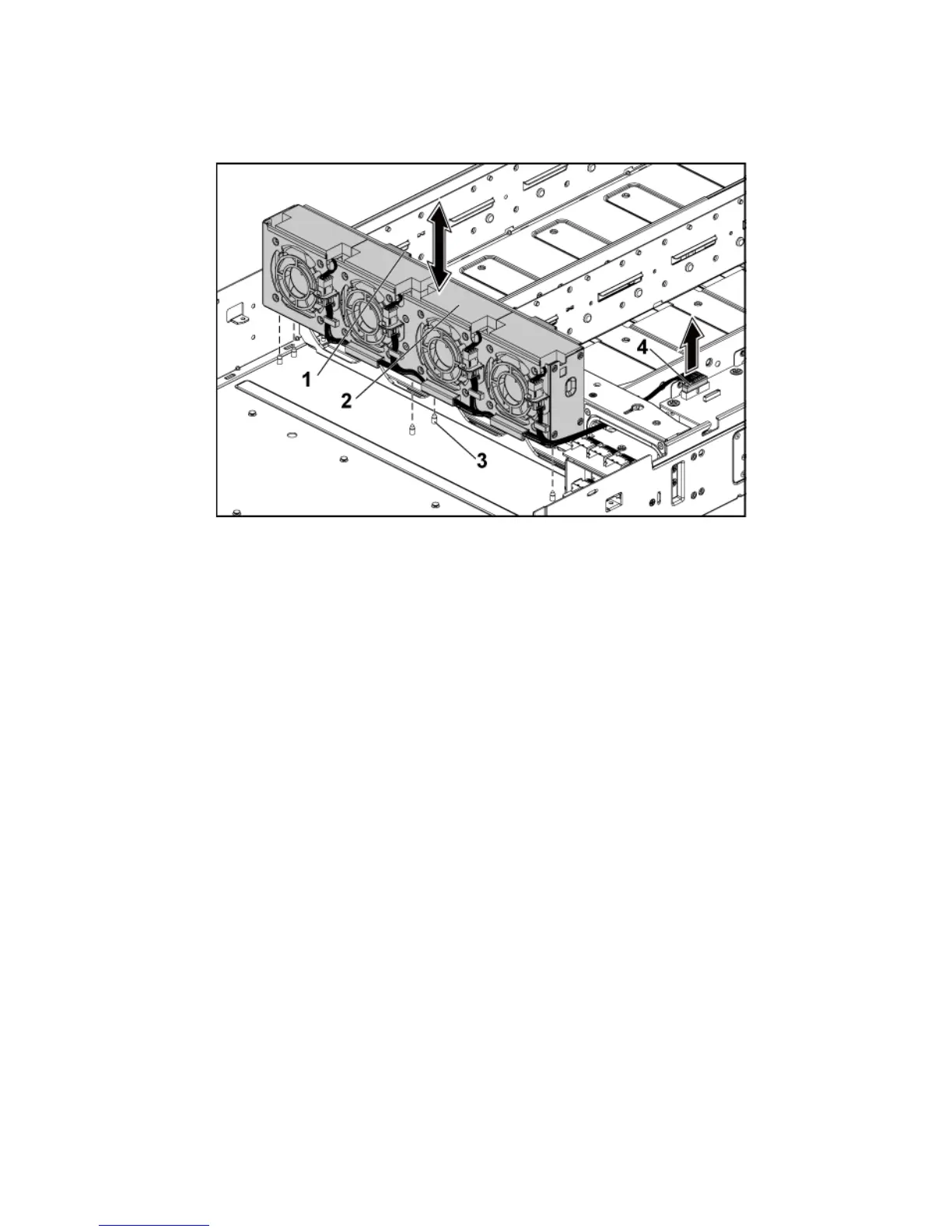

Figure 3-68. Removing and Installing a Cooling Fan Cage
1
locking clips (2)
2
cooling-fan cage
3
locating pin (6)
4
power connector
