270 | Installing System Components

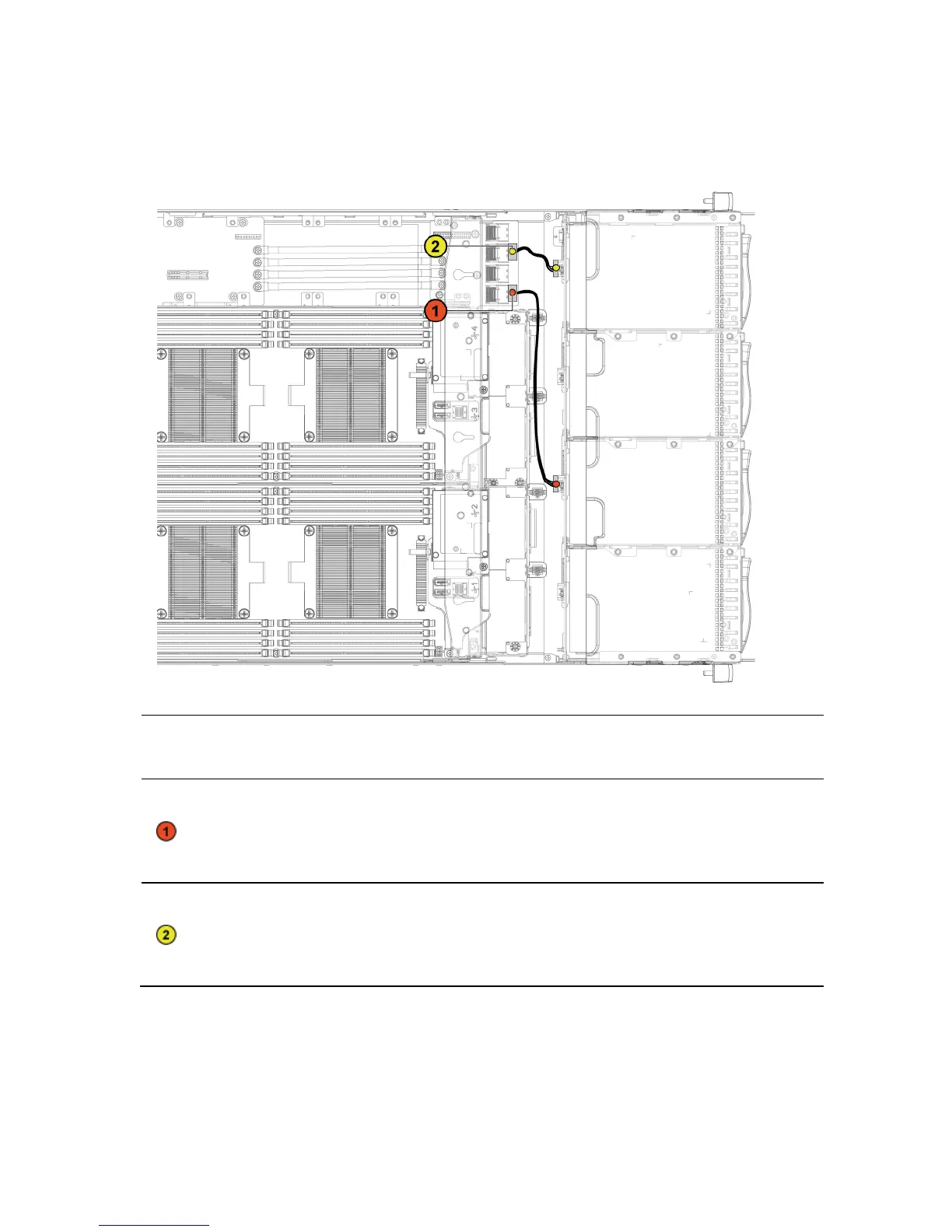

Figure 3-85. Cable Routing−Bottom Middle Plane to Direct Backplane for 12 x3.5”
Hard-Drive Configuration
Item
Cable
From
(Bottom Middle Plane)
To
(
Direct Backplane
)
Hard-drive
backplane
cable
mini-SAS connector for
system board 1 and 2
(hard drive 1, 2, 3 and 4)
(J1)
SATA2 hard drive
connectors 1, 2 and 3
for system board 2
(from top to bottom)
Hard-drive
backplane
cable
mini-SAS connector for
system board 3 and 4
(hard drive 1, 2, 3 and 4)
(J3)
SATA2 hard drive
connectors 1, 2, and 3
for system board 4
(from top to bottom)
