Installing System Components | 273
Item
Cable
From
(Bottom Middle Plane)
To
(
Direct Backplane
)
Hard-drive
backplane
cable
Mini-SAS connector for
system board 1 and 2
(hard drive 1, 2, 3 and 4)
(J1)
SATA2 hard drive
connectors 1 to 4 for
system board 2 (from
right to left)
Hard-drive
backplane
cable
Mini-SAS connector for
system board 1 and 2
(hard drive 5 and 6) (J2)
SATA2 hard drive
connectors 5 to 6 for
system board 2 (from
right to left)
Hard-drive
backplane
cable
Mini-SAS connector for
system board 3 and 4
(hard drive 1, 2, 3 and 4)
(J3)
SATA2 hard drive
connectors 1 to 4 for
system board 4 (from
right to left)

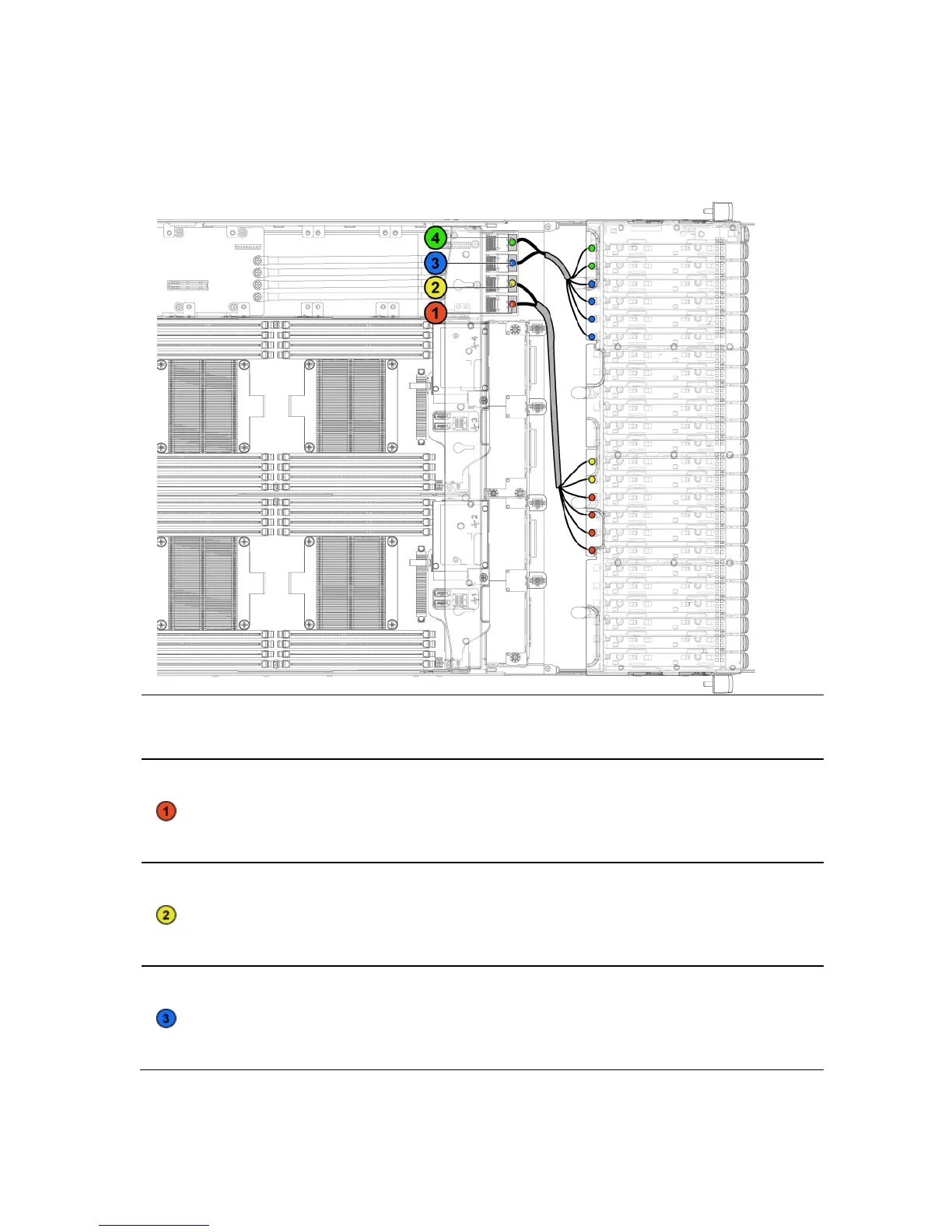

Figure 3-87. Cable Routing−Bottom Middle Plane to Direct Backplane for 24 x2.5”
Hard-Drive Configuration
