Installing System Components | 275
Item
Cable
From
(Top Middle Plane)
To
(Expander Card)
Hard-drive
backplane
cable
Mini-SAS connector for
system board 1 (J1)
Mini-SAS connector
( 0~3) for system
board 1
Hard-drive
backplane
cable
Mini-SAS connector for
system board 3 (J3)
Mini-SAS connector
(8~11) for system
board 3

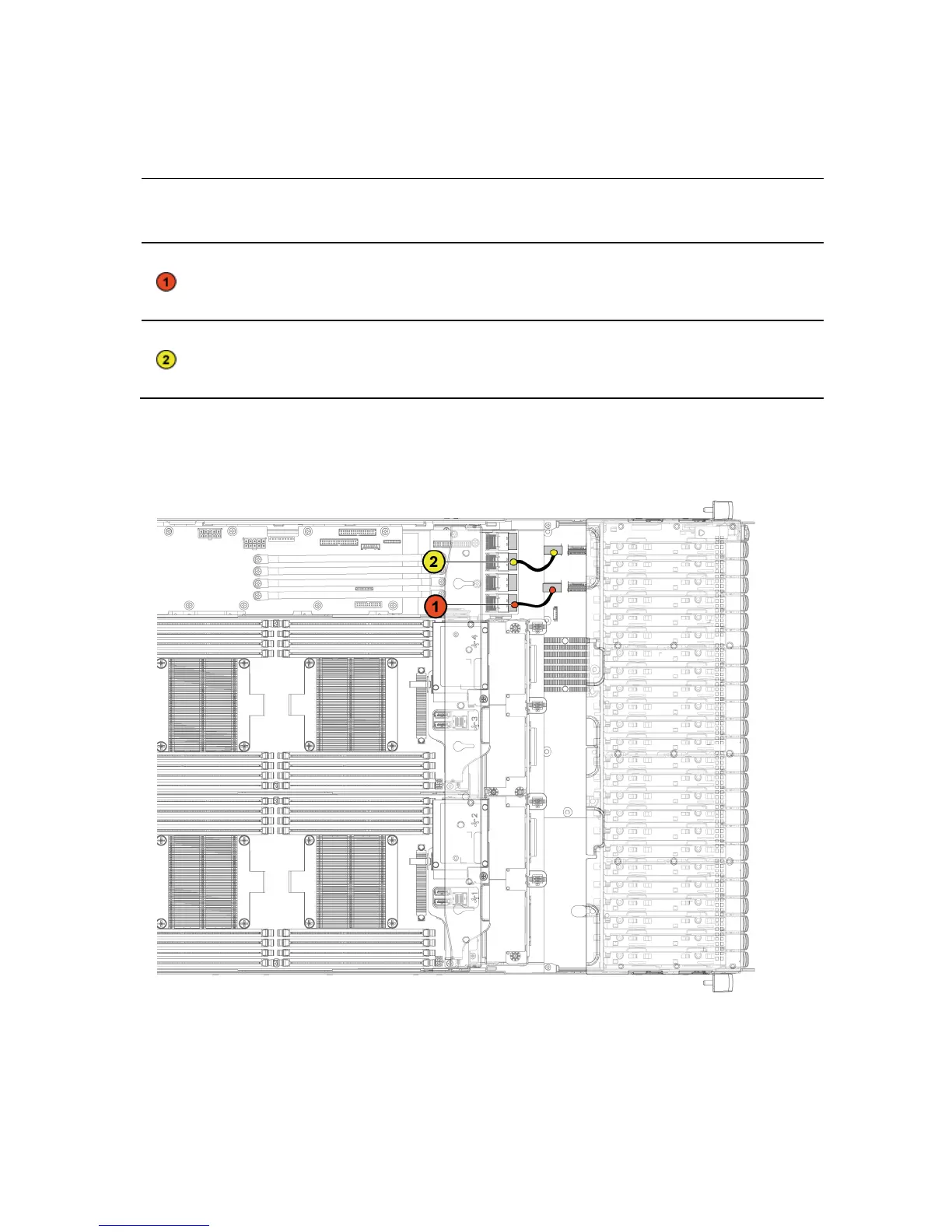

Figure 3-89. Cable Routing−Bottom Middle Plane to 2.5” Hard Drive for Expander
Configuration
